Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 683 | |
| Bore diameter | d | 3 mm |
| Outside diameter | D | 7 mm |
| Width | B | 3 mm |
| Basic dynamic load rating | C | 0.206 kN |
| Basic static load rating | C0 | 0.052 kN |
| Fatigue load limit | Pu | 0.0027 kN |
| Reference speed | nref | 73000 r/min |
| Limiting speed | nG | 103000 r/min |
| Mass | ≈m | 0.001 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Internal clearance | CN (Group N) — Normal internal clearance | |
| Sealing | 2Z — Non-contact shield on both sides | |
| Cage | JN — Steel sheet metal | |
| Lubricant | Lubricating grease | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Precision classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial ball bearing tolerance equivalent | ABEC 1Derived from ISO Normal; not a direct ABEC marking | |
| Mapping basis | ISO 492 / ANSI/ABMA 20The original manufacturer tolerance remains the controlling value. |
Product characteristics8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Version code | >N | Not marked on bearing |
| Type of Seal | 2Z | Non-contact shield on both sides |
| Cage | JN | Steel sheet metal |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | Lubricating grease | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Bore type | Z | Cylindrical |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 3 mm0.118 in |
| Outside diameter | D | 7 mm0.276 in |
| Width | B | 3 mm0.118 in |
| Basic dynamic load rating, radial | Cr | 206 N46.313 lbf |
| Basic static load rating, radial | C0r | 52 N11.691 lbf |
| Fatigue load limit, radial | Cur | 2.7 N0.607 lbf |
| Limiting speed | nG | 103,000 1/min |
| Reference speed | nϑr | 73,000 1/min |
| Mass | ≈m | 1 g0.035 oz |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 3.6 mm0.142 in |
| Maximum diameter of housing shoulder | Da max | 6.4 mm0.252 in |
| Maximum fillet radius | ra max | 0.1 mm0.004 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 0.1 mm0.004 in |
| Shoulder diameter outer ring | D1 | 5.75 mm0.226 in |
| Caliber diameter outer ring | D2 | 6.1 mm0.24 in |
| Shoulder diameter inner ring | d1 | 4.25 mm0.167 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 120 °C248 °F |
Calculation factors1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Calculation factor | f0 | 6.5 |
Capabilities & suitability6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Lifetimelubricationfreedomfrommaintenance | Yes | |
| Suitable for grease lubrication | Yes | |
| Sealedonbothsides | Yes |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2898264 | |
| Brand | FAG | |
| Base Type | 683 | |
| SAP material number | 3029852800000 | |
| Base product | 2305080101 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

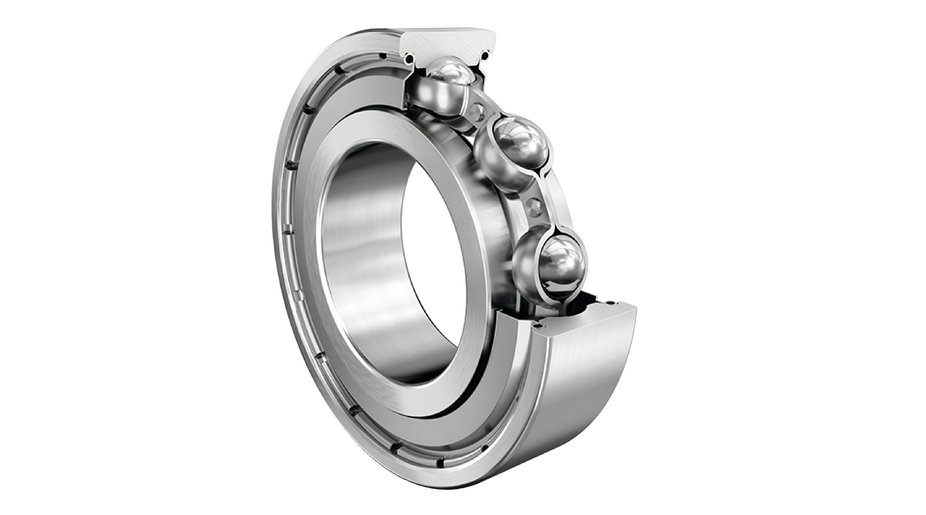

| Construction | Deep groove ball bearing 68..-2Z, single row, shields, steel sheet metal cage | |
| Short Description | Deep groove ball bearing |
Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 3 mm | |
| Outside Diameter (D) | 7 mm | |
| Width (B) | 3 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 206 N | |
| Basic Static Load Rating, Radial (C0R) | 52 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 103,000 1/min | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Reference Speed (Nϑr) | 73,000 1/min | |
| Calculation Factor (F0) | 6.5 | |
| Fatigue Load Limit, Radial (Cur) | 2.7 N | |
| Minimum Diameter Shaft Shoulder (Da Min) | 3.6 mm | |
| Shoulder Diameter Inner Ring (D1) | 4.25 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 6.4 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.1 mm | |
| Maximum Fillet Radius (Ra Max) | 0.1 mm | |
| Shoulder Diameter Outer Ring (D1) | 5.75 mm | |
| Caliber Diameter Outer Ring (D1) | 6.1 mm |
