Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 25 mm |
| Outside diameter | D | 60 mm |
| Width | B | 38 mm |
| Reference speed | nref | 8600 r/min |
| Limiting speed | nG | 3600 r/min |
| Mass | ≈m | 0.435 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Cage | JP — Steel sheet metal | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 150 °C |
Product characteristics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Cage | JP | Steel sheet metal |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Dimensional / heat stabilization | S0 | Rings dimensional stabilized up to 150° |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Inner diameter shaft washer | d | 25 mm0.984 in |
| Outer diameter housing washer | D | 60 mm2.362 in |
| Height | T2 | 38 mm1.496 in |
| Basic dynamic load rating, axial | Ca | 42,800 N9,622.302 lbf |
| Basic static load rating, axial | C0a | 78,500 N17,648.381 lbf |
| Fatigue load limit, axial | Cua | 3,568 N802.158 lbf |
| Limiting speed | nG | 3,600 1/min |
| Reference speed | nϑr | 8,600 1/min |
| Mass | ≈m | 435 g15.344 oz |
Mounting dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Maximum diameter shaft shoulder | da max | 30 mm1.181 in |
| Maximum diameter of housing shoulder | Da max | 42 mm1.654 in |
| Maximum filled radius | ra max | 1 mm0.039 in |
| Maximum filled radius | ra1 max | 0.3 mm0.012 in |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Inner diameter housing washer | D1 | 32 mm1.26 in |
| Height shaft washer | B | 9 mm0.354 in |
| Minimum chamfer dimension | rmin | 1 mm0.039 in |
| Minimum chamfer dimension | r1 min | 0.3 mm0.012 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 150 °C302 °F |
Calculation factors1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Minimum load factor | A | 0.028 |
Capabilities & suitability5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Axial load capacity in one direction | Yes | |
| Axial load capacity in both directions | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 394948 | |
| Brand | FAG | |
| Base Type | 52306 | |
| X Life Marking | n.r. | |
| SAP material number | 0167156160000 | |
| Base product | 2305100102 | |
| Bearing X designation | 52306 | |
| Mounting Manager ID | 52306 | |
| Grease application ID | 52306 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

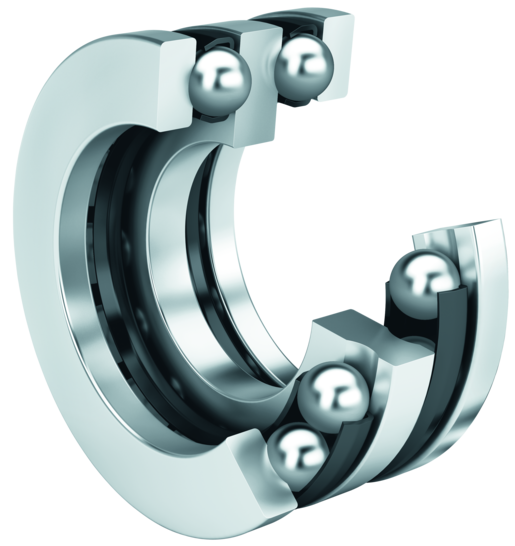

| Construction | Axial deep groove ball bearing 523, double direction, steel sheet metal cage | |
| Short Description | Axial deep groove ball bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Inner Diameter Shaft Washer (D) | 25 mm | |
| Outside Diameter (D) | 60 mm | |
| Height (T2) | 38 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 42,800 N | |
| Basic Static Load Rating, Axial (C0A) | 78,500 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 3,600 1/min | |
| Operating Temperature Max. (Tmax) | 150 °C | |
| Reference Speed (Nϑr) | 8,600 1/min | |
| Height Shaft Washer (B) | 9 mm | |
| Maximum Diameter Of Shaft Shoulder (Da Max) | 30 mm | |
| Minimum Load Factor (A) | 0.028 | |
| Bore Diameter Housing Washer (D1) | 32 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 42 mm | |
| Minimum Chamfer Dimension (Rmin) | 1 mm | |
| Maximum Fillet Radius (Ra Max) | 1 mm | |
| Maximum Recess Radius (Ra1 Max) | 0.3 mm | |
| Minimum Chamfer Dimension (R1 Min) | 0.3 mm | |
| Fatigue Load Limit, Axial (Cua) | 3,568 N |
