Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 12 mm |
| Outside diameter | D | 26 mm |
| Width | B | 9 mm |
| Reference speed | nref | 16900 r/min |
| Limiting speed | nG | 13100 r/min |
| Mass | ≈m | 0.021 kg |
| Precision class | PN — Normal (ISO 492:2023) | |
| Cage | JP — Steel sheet metal | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 150 °C |
Product characteristics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Cage | JP | Steel sheet metal |
| Tolerance class | PN | Normal (ISO 492:2023) |
| Dimensional / heat stabilization | S0 | Rings dimensional stabilized up to 150° |

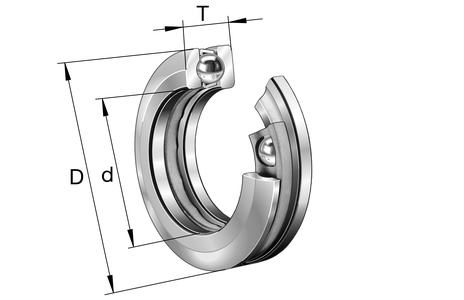

Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Inner diameter shaft washer | d | 12 mm0.472 in |
| Outer diameter housing washer | D | 26 mm1.024 in |
| Height | T | 9 mm0.354 in |
| Basic dynamic load rating, axial | Ca | 10,300 N2,315.647 lbf |
| Basic static load rating, axial | C0a | 15,400 N3,462.23 lbf |
| Fatigue load limit, axial | Cua | 710 N159.622 lbf |
| Limiting speed | nG | 13,100 1/min |
| Reference speed | nϑr | 16,900 1/min |
| Mass | ≈m | 21 g0.741 oz |
Mounting dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 20 mm0.787 in |
| Maximum diameter of housing shoulder | Da max | 18 mm0.709 in |
| Maximum filled radius | ra max | 0.3 mm0.012 in |
Dimensions3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum chamfer dimension | rmin | 0.3 mm0.012 in |
| Inner diameter housing washer | D1 | 13 mm0.512 in |
| Outer diameter shaft washer | d1 | 26 mm1.024 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 150 °C302 °F |
Calculation factors1 parameter
| Parameter | Symbol | Value |
|---|---|---|
| Minimum load factor | A | 0.001 |
Capabilities & suitability4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Axial load capacity in one direction | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 394400 | |
| Brand | FAG | |
| Base Type | 51101 | |
| X Life Marking | n.r. | |
| SAP material number | 0167146360000 | |
| Base product | 2305100101 | |
| Bearing X designation | 51101 | |
| Mounting Manager ID | 51101 | |
| Grease application ID | 51101 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

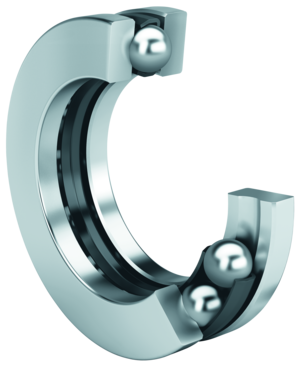

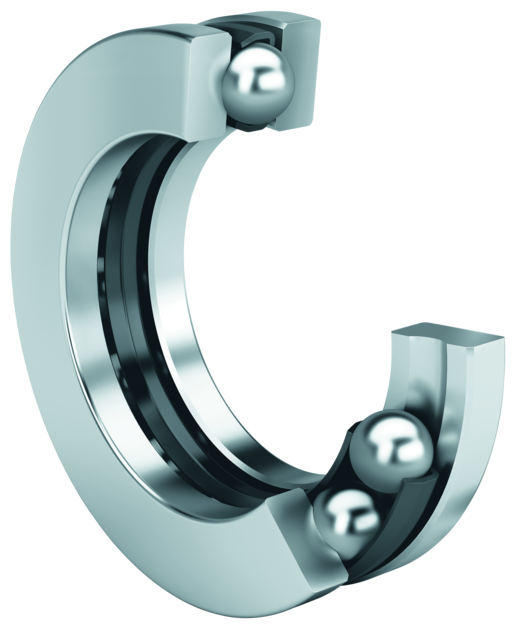

| Construction | Axial deep groove ball bearing 511, single direction, steel sheet metal cage | |
| Short Description | Axial deep groove ball bearing |
Technical Data17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 12 mm | |
| Outside Diameter (D) | 26 mm | |
| Width (B) | 9 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 10,300 N | |
| Basic Static Load Rating, Axial (C0A) | 15,400 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 13,100 1/min | |
| Operating Temperature Max. (Tmax) | 150 °C | |
| Reference Speed (Nϑr) | 16,900 1/min | |
| Minimum Diameter Shaft Shoulder (Da Min) | 20 mm | |
| Minimum Load Factor (A) | 0.001 | |
| Rip Diameter Shaft Washer (D1) | 26 mm | |
| Bore Diameter Housing Washer (D1) | 13 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 18 mm | |
| Minimum Chamfer Dimension (Rmin) | 0.3 mm | |
| Maximum Fillet Radius (Ra Max) | 0.3 mm | |
| Fatigue Load Limit, Axial (Cua) | 710 N |
