Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications13 parameters

Core specifications
Parameter	Symbol	Value
Bore diameter	d	22 mm
Outside diameter	D	40 mm
Width	B	12 mm
Basic dynamic load rating	C	18.2 kN
Basic static load rating	C0	21.4 kN
Fatigue load limit	Pu	2.21 kN
Reference speed	nref	10300 r/min
Limiting speed	nG	19300 r/min
Mass	≈m	0.065 kg
Precision class		P6X — Class 6X (ISO 492:2023)
Cage		Standard — Sheet steel cage, window cage, roller-guided
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	120 °C

Product characteristics6 parameters

Product characteristics
Parameter	Symbol	Value
Tolerance class	P6X	Class 6X (ISO 492:2023)
Heat treatment		Standard
Cage	Standard	Sheet steel cage, window cage, roller-guided
Internal design		Standard
Quality level		Standard
Number of rows	1	Single-row design

Main Dimensions & Performance Data11 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	22 mm0.866 in
Outside diameter	D	40 mm1.575 in
Width, inner ring	B	12 mm0.472 in
Width, outer ring	C	9 mm0.354 in
Width, total	T	12 mm0.472 in
Basic dynamic load rating, radial	Cr	18,200 N4,091.727 lbf
Basic static load rating, radial	C0r	21,400 N4,811.151 lbf
Fatigue load limit, radial	Cur	2,210 N496.853 lbf
Limiting speed	nG	19,300 1/min
Thermal speed rating	nϑr	10,300 1/min
Mass	≈m	0.065 kg0.143 lbs

Mounting dimensions8 parameters

Mounting dimensions
Parameter	Symbol	Value
Maximum diameter of shaft shoulder	da max	26 mm1.024 in
Minimum diameter of shaft shoulder	db min	26 mm1.024 in
Minimum diameter of housing shoulder	Da min	35 mm1.378 in
Minimum diameter of housing shoulder	Db min	37 mm1.457 in
Minimum axial space	Ca min	2 mm0.079 in
Minimum axial space	Cb min	3 mm0.118 in
Maximum fillet radius of shaft	ra max	0.3 mm0.012 in
Maximum fillet radius of housing	rb max	0.3 mm0.012 in

Dimensions4 parameters

Dimensions
Parameter	Symbol	Value
Minimum chamfer dimension of inner ring back face	r1, 2 min	0.3 mm0.012 in
Minimum chamfer dimension of outer ring back face	r3, 4 min	0.3 mm0.012 in
Distance between the apexes of the pressure cones	a	8 mm0.315 in
Guidance rib diameter of inner ring	d1	31.9 mm1.256 in

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	120 °C248 °F

Calculation factors3 parameters

Calculation factors
Parameter	Symbol	Value
Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y	e	0.32
Dynamic axial load factor	Y	1.88
Static axial load factor	Y0	1.04

Capabilities & suitability5 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Suitable for oil lubrication		Yes
Unsealed design		Yes

Manufacturer Identity4 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Tapered roller bearings 329, main dimensions acc. to DIN 720, separable
Short Description		Tapered roller bearing

Additional information1 parameter

Additional information
Parameter	Symbol	Value
Comparative designation to ISO 10317 and ISO 355		T2BC022

Technical Data27 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		22 mm
Outside Diameter (D)		40 mm
Width (B)		12 mm
Basic Dynamic Load Rating, Radial (Cr)		18,200 N
Basic Static Load Rating, Radial (C0R)		21,400 N
Operating Temperature Min. (Tmin)		-30 °C
Limiting Speed (Ng)		19,300 1/min
Operating Temperature Max. (Tmax)		120 °C
Reference Speed (Nϑr)		10,300 1/min
Maximum Fillet Radius Of Housing (Rb Max)		0.3 mm
Minimum Chamfer Dimension Of Outer Ring Back Face (R3, 4 M)		0.3 mm
Minimum Diameter Of Housing Shoulder (Da Min)		35 mm
Minimum Diameter Of Housing Shoulder (Db Min)		37 mm
Width, Outer Ring (C)		9 mm
Fatigue Load Limit, Radial (Cur)		2,210 N
Limiting Value Of Fa/Fr For The Applicability Of Diff. Values Of Factors X And Y (E)		0.32
Maximum Diameter Of Shaft Shoulder (Da Max)		26 mm
Minimum Diameter Of Shaft Shoulder (Db Min)		26 mm
Dynamic Axial Load Factor (Y)		1.88
Maximum Fillet Radius (Ra Max)		0.3 mm
Minimum Axial Space (Cb Min)		3 mm
Minimum Chamfer Dimension Of Inner Ring Back Face (R1, 2 M)		0.3 mm
Guidance Rib Diameter Of Inner Ring (D1)		31.9 mm
Minimum Axial Space (Ca Min)		2 mm
Width, Inner Ring (B)		12 mm
Static Axial Load Factor (Y0)		1.04
Distance Between The Apexes Of The Pressure Cones (A)		8 mm

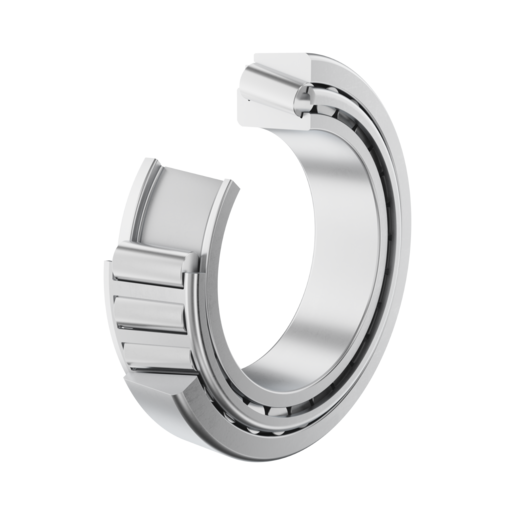

FAG 329/22
