Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 294/560 | |
| Bore diameter | d | 560 mm |
| Outside diameter | D | 980 mm |
| Width | B | 250 mm |
| Reference speed | nref | 285 r/min |
| Limiting speed | nG | 610 r/min |
| Mass | ≈m | 779.5 kg |
| Cage | MB — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Heat treatment | Standard | |
| Cage | MB | Solid brass cage |
| Locating feature, housing washer | Without | |
| Handling thread holes | Without | |
| Constricted width and inclination variation | Standard | |
| Test certificate | Without |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 560 mm22.047 in |
| Outside diameter | D | 980 mm38.583 in |
| Section height | T | 250 mm9.843 in |
| Basic dynamic load rating, axial | Ca | 14,600,000 N3,282,374.101 lbf |
| Basic static load rating, axial | C0a | 51,000,000 N11,465,827.338 lbf |
| Fatigue load limit, axial | Cua | 4,300,000 N966,726.619 lbf |
| Limiting speed | nG | 610 1/min |
| Reference speed | nϑr | 285 1/min |
| Mass | ≈m | 779.5 kg1,718.501 lbs |
Mounting dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 770 mm30.315 in |
| Maximum diameter of housing shoulder | Da max | 860 mm33.858 in |
| Minimum bore diameter housing | Db min | 997 mm39.252 in |
| Maximum distance sleeve | db max | 602 mm23.701 in |
| Maximum recess radius | ra max | 10 mm0.394 in |
Dimensions8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter housing washer | D1 | 727 mm28.622 in |
| Rip diameter shaft washer | d1 | 900 mm35.433 in |
| Minimum chamfer dimension | rmin | 12 mm0.472 in |
| Height of the housing washer | T1 | 122 mm4.803 in |
| Height of shaft washer | T2 | 99 mm3.898 in |
| Height of the shaft washer | T3 | 168 mm6.614 in |
| Height of shaft washer, inc. lip ring | T4 | 241 mm9.488 in |
| Distance of the center point | A | 328 mm12.913 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 396528 | |
| Brand | FAG | |
| Base Type | 294/560 | |
| Old Designation | ["294/560-E1-MB"] | |
| X Life Marking | XL | |
| SAP material number | 0390001680000 | |
| Base product | 2305110301 | |
| Bearing X designation | 294/560-E1-XL-MB | |
| Mounting Manager ID | 294/560-E1-XL-MB |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

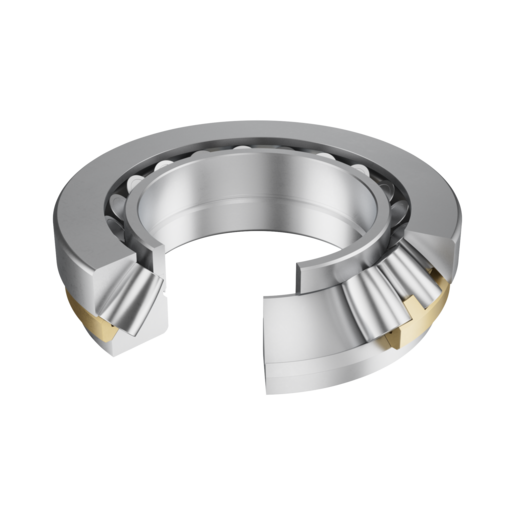

| Construction | Axial spherical roller bearing 294..-E1-XL-MB, with flanging ring | |
| Short Description | Axial spherical roller bearing |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 560 mm | |
| Outside Diameter (D) | 980 mm | |
| Height (T) | 250 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 14,600,000 N | |
| Basic Static Load Rating, Axial (C0A) | 51,000,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 610 1/min | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Reference Speed (Nϑr) | 285 1/min | |
| Minimum Diameter Of Housing Shoulder (Db Min) | 997 mm | |
| Bore Diameter Housing Washer (D1) | 727 mm | |
| Height Of Shaft Washer (T2) | 99 mm | |
| Height Of The Housing Washer (T1) | 122 mm | |
| Rip Diameter Shaft Washer (D1) | 900 mm | |
| Height Of The Shaft Washer (T3) | 168 mm | |
| Minimum Diameter Shaft Shoulder (Da Min) | 770 mm | |
| Distance Of The Center Point (A) | 328 mm | |
| Height Of Shaft Washer, Inc. Lip Ring (T4) | 241 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 860 mm | |
| Maximum Distance Sleeve (Db Max) | 602 mm | |
| Minimum Chamfer Dimension (Rmin) | 12 mm | |
| Maximum Fillet Radius (Ra Max) | 10 mm | |
| Fatigue Load Limit, Axial (Cua) | 4,300,000 N |
