Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications10 parameters

Core specifications
Parameter	Symbol	Value
Series		293/850
Bore diameter	d	850 mm
Outside diameter	D	1250 mm
Width	B	243 mm
Reference speed	nref	218 r/min
Limiting speed	nG	455 r/min
Mass	≈m	921 kg
Cage		MB — Solid brass cage
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	200 °C

Product characteristics3 parameters

Product characteristics
Parameter	Symbol	Value
Heat treatment		Standard
Cage	MB	Solid brass cage
Constricted width and inclination variation		Standard

Main Dimensions & Performance Data9 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	850 mm33.465 in
Outside diameter	D	1,250 mm49.213 in
Section height	T	243 mm9.567 in
Basic dynamic load rating, axial	Ca	12,900,000 N2,900,179.856 lbf
Basic static load rating, axial	C0a	62,000,000 N13,938,848.921 lbf
Fatigue load limit, axial	Cua	5,500,000 N1,236,510.791 lbf
Limiting speed	nG	455 1/min
Reference speed	nϑr	218 1/min
Mass	≈m	921 kg2,030.455 lbs

Mounting dimensions5 parameters

Mounting dimensions
Parameter	Symbol	Value
Minimum diameter shaft shoulder	da min	1,045 mm41.142 in
Maximum diameter of housing shoulder	Da max	1,137 mm44.764 in
Minimum bore diameter housing	Db min	1,273 mm50.118 in
Maximum distance sleeve	db max	896 mm35.276 in
Maximum recess radius	ra max	10 mm0.394 in

Dimensions8 parameters

Dimensions
Parameter	Symbol	Value
Bore diameter housing washer	D1	1,021 mm40.197 in
Rip diameter shaft washer	d1	1,165 mm45.866 in
Minimum chamfer dimension	rmin	12 mm0.472 in
Height of the housing washer	T1	118 mm4.646 in
Height of shaft washer	T2	87 mm3.425 in
Height of the shaft washer	T3	152 mm5.984 in
Height of shaft washer, inc. lip ring	T4	235 mm9.252 in
Distance of the center point	A	468 mm18.425 in

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	200 °C392 °F

Capabilities & suitability8 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Suitable for oil lubrication		Yes
Unsealed design		Yes
Largebearing		Yes
Staticangularerrorandmisalignment		Yes
Dynamicangularerrorandmisalignment		Yes

Manufacturer Identity8 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value

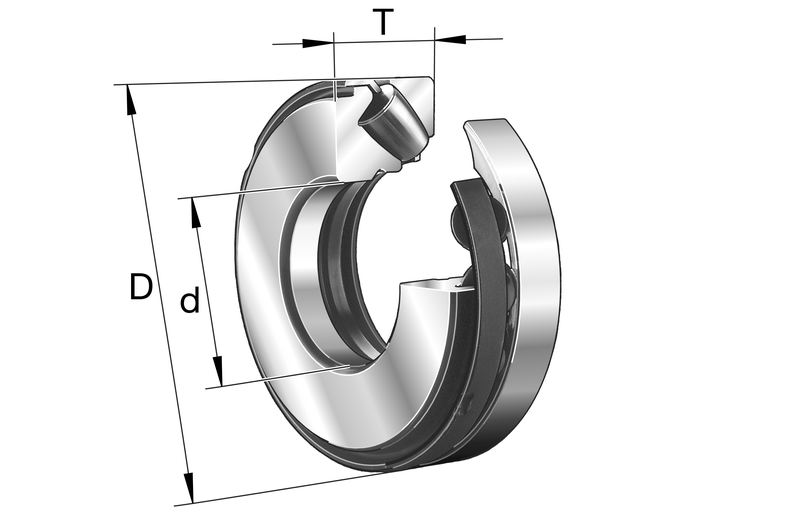

Construction		Axial spherical roller bearing 293..-E1-MB, with flanging ring
Short Description		Axial spherical roller bearing

Technical Data23 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		850 mm
Outside Diameter (D)		1,250 mm
Height (T)		243 mm
Basic Dynamic Load Rating, Axial (Ca)		12,900,000 N
Basic Static Load Rating, Axial (C0A)		62,000,000 N
Operating Temperature Min. (Tmin)		-30 °C
Limiting Speed (Ng)		455 1/min
Operating Temperature Max. (Tmax)		200 °C
Reference Speed (Nϑr)		218 1/min
Minimum Diameter Of Housing Shoulder (Db Min)		1,273 mm
Bore Diameter Housing Washer (D1)		1,021 mm
Height Of Shaft Washer (T2)		87 mm
Height Of The Housing Washer (T1)		118 mm
Rip Diameter Shaft Washer (D1)		1,165 mm
Height Of The Shaft Washer (T3)		152 mm
Minimum Diameter Shaft Shoulder (Da Min)		1,045 mm
Distance Of The Center Point (A)		468 mm
Height Of Shaft Washer, Inc. Lip Ring (T4)		235 mm
Maximum Diameter Of Housing Shoulder (Da Max)		1,137 mm
Maximum Distance Sleeve (Db Max)		896 mm
Minimum Chamfer Dimension (Rmin)		12 mm
Maximum Fillet Radius (Ra Max)		10 mm
Fatigue Load Limit, Axial (Cua)		5,500,000 N

FAG 293/850-E1-MB
