Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 29284 | |
| Bore diameter | d | 420 mm |
| Outside diameter | D | 580 mm |
| Width | B | 95 mm |
| Reference speed | nref | 600 r/min |
| Limiting speed | nG | 1040 r/min |
| Mass | ≈m | 74.22 kg |
| Cage | MB — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Heat treatment | Standard | |
| Cage | MB | Solid brass cage |
| Locating feature, housing washer | N1 | Locating feature, housing washer |
| Handling thread holes | Without | |
| Constricted width and inclination variation | Standard | |
| Test certificate | Without |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 420 mm16.535 in |
| Outside diameter | D | 580 mm22.835 in |
| Section height | T | 95 mm3.74 in |
| Basic dynamic load rating, axial | Ca | 2,460,000 N553,057.554 lbf |
| Basic static load rating, axial | C0a | 11,100,000 N2,495,503.597 lbf |
| Fatigue load limit, axial | Cua | 1,130,000 N254,046.763 lbf |
| Limiting speed | nG | 1,040 1/min |
| Reference speed | nϑr | 600 1/min |
| Mass | ≈m | 74.22 kg163.627 lbs |
Mounting dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 495 mm19.488 in |
| Maximum diameter of housing shoulder | Da max | 534 mm21.024 in |
| Minimum bore diameter housing | Db min | 590 mm23.228 in |
| Maximum distance sleeve | db max | 439 mm17.283 in |
| Maximum recess radius | ra max | 4 mm0.157 in |
Dimensions8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter housing washer | D1 | 489 mm19.252 in |
| Rip diameter shaft washer | d1 | 545 mm21.457 in |
| Minimum chamfer dimension | rmin | 5 mm0.197 in |
| Height of the housing washer | T1 | 46 mm1.811 in |
| Height of shaft washer | T2 | 34 mm1.339 in |
| Height of the shaft washer | T3 | 58.5 mm2.303 in |
| Height of shaft washer, inc. lip ring | T4 | 91 mm3.583 in |
| Distance of the center point | A | 225 mm8.858 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Capabilities & suitability8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Largebearing | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 396490 | |
| Brand | FAG | |
| Base Type | 29284 | |
| X Life Marking | n.r. | |
| SAP material number | 0389995600000 | |
| Base product | 2305110301 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

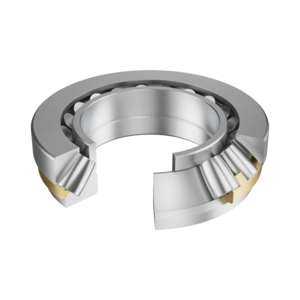

| Construction | Axial spherical roller bearing 292..-E1-MB, with flanging ring | |
| Short Description | Axial spherical roller bearing |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 420 mm | |
| Outside Diameter (D) | 580 mm | |
| Height (T) | 95 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 2,460,000 N | |
| Basic Static Load Rating, Axial (C0A) | 11,100,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 1,040 1/min | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Reference Speed (Nϑr) | 600 1/min | |
| Minimum Diameter Of Housing Shoulder (Db Min) | 590 mm | |
| Bore Diameter Housing Washer (D1) | 489 mm | |
| Height Of Shaft Washer (T2) | 34 mm | |
| Height Of The Housing Washer (T1) | 46 mm | |
| Rip Diameter Shaft Washer (D1) | 545 mm | |
| Height Of The Shaft Washer (T3) | 58.5 mm | |
| Minimum Diameter Shaft Shoulder (Da Min) | 495 mm | |
| Distance Of The Center Point (A) | 225 mm | |
| Height Of Shaft Washer, Inc. Lip Ring (T4) | 91 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 534 mm | |
| Maximum Distance Sleeve (Db Max) | 439 mm | |
| Minimum Chamfer Dimension (Rmin) | 5 mm | |
| Maximum Fillet Radius (Ra Max) | 4 mm | |
| Fatigue Load Limit, Axial (Cua) | 1,130,000 N |
