Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 29230 | |
| Bore diameter | d | 150 mm |
| Outside diameter | D | 215 mm |
| Width | B | 39 mm |
| Reference speed | nref | 1540 r/min |
| Limiting speed | nG | 3150 r/min |
| Mass | ≈m | 4.485 kg |
| Cage | MB — Solid brass cage | |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 200 °C |
Product characteristics6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Heat treatment | Standard | |
| Cage | MB | Solid brass cage |
| Locating feature, housing washer | Without | |
| Handling thread holes | Without | |
| Constricted width and inclination variation | Standard | |
| Test certificate | Without |
Main Dimensions & Performance Data9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 150 mm5.906 in |
| Outside diameter | D | 215 mm8.465 in |
| Section height | T | 39 mm1.535 in |
| Basic dynamic load rating, axial | Ca | 425,000 N95,548.561 lbf |
| Basic static load rating, axial | C0a | 1,720,000 N386,690.647 lbf |
| Fatigue load limit, axial | Cua | 207,000 N46,537.77 lbf |
| Limiting speed | nG | 3,150 1/min |
| Reference speed | nϑr | 1,540 1/min |
| Mass | ≈m | 4.485 kg9.888 lbs |
Mounting dimensions5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Minimum diameter shaft shoulder | da min | 185 mm7.283 in |
| Maximum diameter of housing shoulder | Da max | 193 mm7.598 in |
| Minimum bore diameter housing | Db min | 219 mm8.622 in |
| Maximum distance sleeve | db max | 157 mm6.181 in |
| Maximum recess radius | ra max | 1.5 mm0.059 in |
Dimensions8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter housing washer | D1 | 176 mm6.929 in |
| Rip diameter shaft washer | d1 | 200 mm7.874 in |
| Minimum chamfer dimension | rmin | 1.5 mm0.059 in |
| Height of the housing washer | T1 | 20.5 mm0.807 in |
| Height of shaft washer | T2 | 14 mm0.551 in |
| Height of the shaft washer | T3 | 25 mm0.984 in |
| Height of shaft washer, inc. lip ring | T4 | 37 mm1.457 in |
| Distance of the center point | A | 82 mm3.228 in |
Temperature range2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Operating temperature min. | Tmin | -30 °C-22 °F |
| Operating temperature max. | Tmax | 200 °C392 °F |
Capabilities & suitability7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Radial load capacity | Yes | |
| Axial load capacity in one direction | Yes | |
| Suitable for grease lubrication | Yes | |
| Suitable for oil lubrication | Yes | |
| Unsealed design | Yes | |
| Staticangularerrorandmisalignment | Yes | |
| Dynamicangularerrorandmisalignment | Yes |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 396455 | |
| Brand | FAG | |
| Base Type | 29230 | |
| Old Designation | ["29230E1MB"] | |
| X Life Marking | n.r. | |
| SAP material number | 0390076690000 | |
| Base product | 2305110301 | |
| Bearing X designation | 29230-E1-MB | |
| Mounting Manager ID | 29230-E1-MB |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

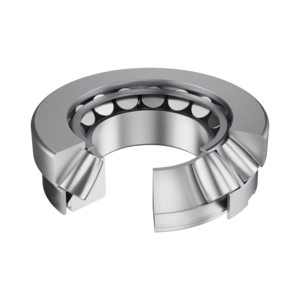

| Construction | Axial spherical roller bearing 292..-E1-MB, with flanging ring | |
| Short Description | Axial spherical roller bearing |
Technical Data23 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 150 mm | |
| Outside Diameter (D) | 215 mm | |
| Height (T) | 39 mm | |
| Basic Dynamic Load Rating, Axial (Ca) | 425,000 N | |
| Basic Static Load Rating, Axial (C0A) | 1,720,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Limiting Speed (Ng) | 3,150 1/min | |
| Operating Temperature Max. (Tmax) | 200 °C | |
| Reference Speed (Nϑr) | 1,540 1/min | |
| Minimum Diameter Of Housing Shoulder (Db Min) | 219 mm | |
| Bore Diameter Housing Washer (D1) | 176 mm | |
| Height Of Shaft Washer (T2) | 14 mm | |
| Height Of The Housing Washer (T1) | 20.5 mm | |
| Rip Diameter Shaft Washer (D1) | 200 mm | |
| Height Of The Shaft Washer (T3) | 25 mm | |
| Minimum Diameter Shaft Shoulder (Da Min) | 185 mm | |
| Distance Of The Center Point (A) | 82 mm | |
| Height Of Shaft Washer, Inc. Lip Ring (T4) | 37 mm | |
| Maximum Diameter Of Housing Shoulder (Da Max) | 193 mm | |
| Maximum Distance Sleeve (Db Max) | 157 mm | |
| Minimum Chamfer Dimension (Rmin) | 1.5 mm | |
| Maximum Fillet Radius (Ra Max) | 1.5 mm | |
| Fatigue Load Limit, Axial (Cua) | 207,000 N |
