Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications10 parameters

Core specifications
Parameter	Symbol	Value
Series		292/1000
Bore diameter	d	1000 mm
Outside diameter	D	1320 mm
Width	B	190 mm
Reference speed	nref	233 r/min
Limiting speed	nG	420 r/min
Mass	≈m	0.001 kg
Cage		MB — Solid brass cage
Minimum operating temperature	Tmin	-30 °C
Maximum operating temperature	Tmax	200 °C

Product characteristics3 parameters

Product characteristics
Parameter	Symbol	Value
Heat treatment		Standard
Cage	MB	Solid brass cage
Constricted width and inclination variation		Standard

Main Dimensions & Performance Data9 parameters

Main Dimensions & Performance Data
Parameter	Symbol	Value
Bore diameter	d	1,000 mm39.37 in
Outside diameter	D	1,320 mm51.969 in
Section height	T	190 mm7.48 in
Basic dynamic load rating, axial	Ca	9,600,000 N2,158,273.381 lbf
Basic static load rating, axial	C0a	55,000,000 N12,365,107.914 lbf
Fatigue load limit, axial	Cua	4,600,000 N1,034,172.662 lbf
Limiting speed	nG	420 1/min
Reference speed	nϑr	233 1/min
Mass	≈m	1 g0.035 oz

Mounting dimensions5 parameters

Mounting dimensions
Parameter	Symbol	Value
Minimum diameter shaft shoulder	da min	1,155 mm45.472 in
Maximum diameter of housing shoulder	Da max	1,216 mm47.874 in
Minimum bore diameter housing	Db min	1,340 mm52.756 in
Maximum distance sleeve	db max	1,042 mm41.024 in
Maximum recess radius	ra max	8 mm0.315 in

Dimensions8 parameters

Dimensions
Parameter	Symbol	Value
Bore diameter housing washer	D1	1,139 mm44.843 in
Rip diameter shaft washer	d1	1,255 mm49.409 in
Minimum chamfer dimension	rmin	9.5 mm0.374 in
Height of the housing washer	T1	98 mm3.858 in
Height of shaft washer	T2	68 mm2.677 in
Height of the shaft washer	T3	117.5 mm4.626 in
Height of shaft washer, inc. lip ring	T4	182 mm7.165 in
Distance of the center point	A	540 mm21.26 in

Temperature range2 parameters

Temperature range
Parameter	Symbol	Value
Operating temperature min.	Tmin	-30 °C-22 °F
Operating temperature max.	Tmax	200 °C392 °F

Capabilities & suitability8 parameters

Capabilities & suitability
Parameter	Symbol	Value
Radial load capacity		Yes
Axial load capacity in one direction		Yes
Suitable for grease lubrication		Yes
Suitable for oil lubrication		Yes
Unsealed design		Yes
Largebearing		Yes
Staticangularerrorandmisalignment		Yes
Dynamicangularerrorandmisalignment		Yes

Manufacturer Identity8 parameters

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Axial spherical roller bearing 292..-E1-MB, with flanging ring
Short Description		Axial spherical roller bearing

Technical Data23 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		1,000 mm
Outside Diameter (D)		1,320 mm
Height (T)		190 mm
Basic Dynamic Load Rating, Axial (Ca)		9,600,000 N
Basic Static Load Rating, Axial (C0A)		55,000,000 N
Operating Temperature Min. (Tmin)		-30 °C
Limiting Speed (Ng)		420 1/min
Operating Temperature Max. (Tmax)		200 °C
Reference Speed (Nϑr)		233 1/min
Minimum Diameter Of Housing Shoulder (Db Min)		1,340 mm
Bore Diameter Housing Washer (D1)		1,139 mm
Height Of Shaft Washer (T2)		68 mm
Height Of The Housing Washer (T1)		98 mm
Rip Diameter Shaft Washer (D1)		1,255 mm
Height Of The Shaft Washer (T3)		117.5 mm
Minimum Diameter Shaft Shoulder (Da Min)		1,155 mm
Distance Of The Center Point (A)		540 mm
Height Of Shaft Washer, Inc. Lip Ring (T4)		182 mm
Maximum Diameter Of Housing Shoulder (Da Max)		1,216 mm
Maximum Distance Sleeve (Db Max)		1,042 mm
Minimum Chamfer Dimension (Rmin)		9.5 mm
Maximum Fillet Radius (Ra Max)		8 mm
Fatigue Load Limit, Axial (Cua)		4,600,000 N

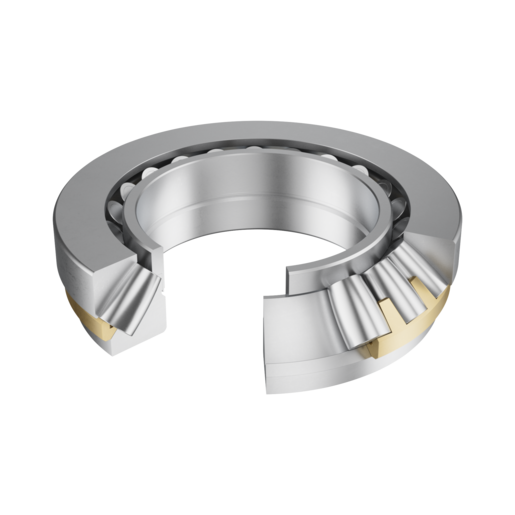

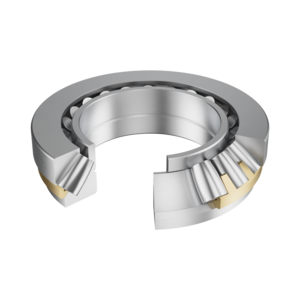

FAG 292/1000-E1-MB
