Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | 94000 | |

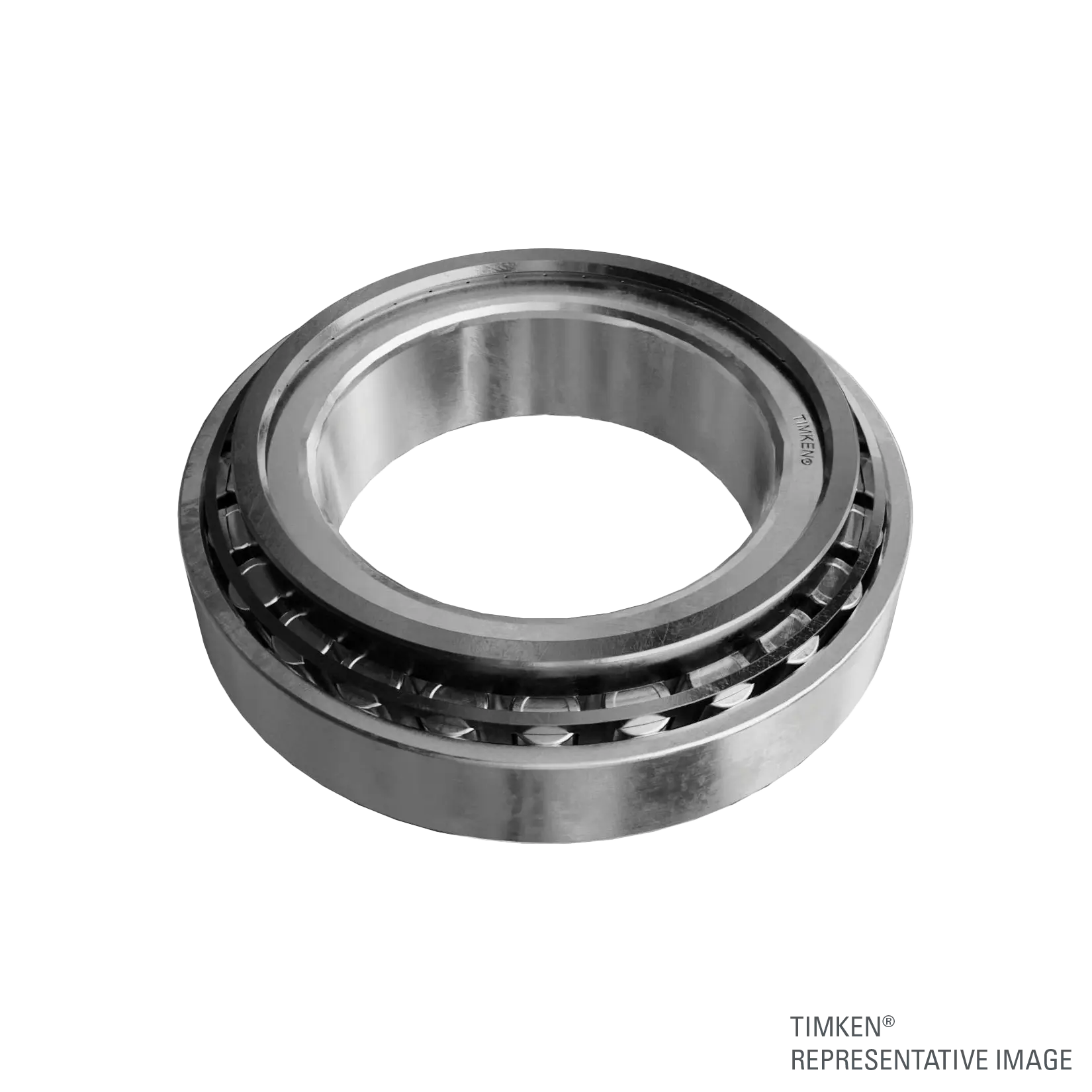

| Variant / construction | TS - Tapered Single | |
| Bore diameter | d | 177.8 mm |
| Outside diameter | D | 288.925 mm |
| Width | B | 63.5 mm |
| Basic dynamic load rating | C | 611 kN |
| Basic static load rating | C0 | 1070 kN |
| Mass | ≈m | 16.19 kg |
Calculation Factors6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| K Factor | 1.25 | |
| Y1 Factor | 1.28 | |
| Y2 Factor | 0.00 | |
| Y0 Factor | 0.70 | |
| E Factor | 0.47 | |
| Cg Factor | 0.1287 |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | Timken | |
| Material Number | 000000000100035948 | |
| World Assembly Part Number | AAAA541_AAAA517 | |
| Inner Ring Part Number | AAAA541 | |
| Outer Ring Part Number | AAAA517 | |
| Drawing Number | B-81206 | |
| Upc | 0053893386775 | |
| Official Source System | CORE BP - DS DF | |
| Official Last Run | 2026-08-23T20:02:46.743 |
Product Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Type Description | TS - Tapered Single | |
| Number Of Rows | 1 | |
| Tapered Bore | N |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Overall Width | 75.900 mm | |
| Radial Rating | 159,000 N | |
| Axial Rating | 127,000 N | |
| Dynamic Rating C1 | 611,000 N | |
| Dynamic Rating C90 | 159,000 N | |
| Dynamic Axial Rating Ca90 | 127,000 N | |
| Dynamic Axial Rating Ca1 | 490,000 N | |
| Static Radial Rating C0 | 1,070,000 N | |
| Extended Dynamic Rating Ce | 0 N | |
| Static Axial Rating C0A | 1,470,000 N |
