Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | NCS-341901 | |

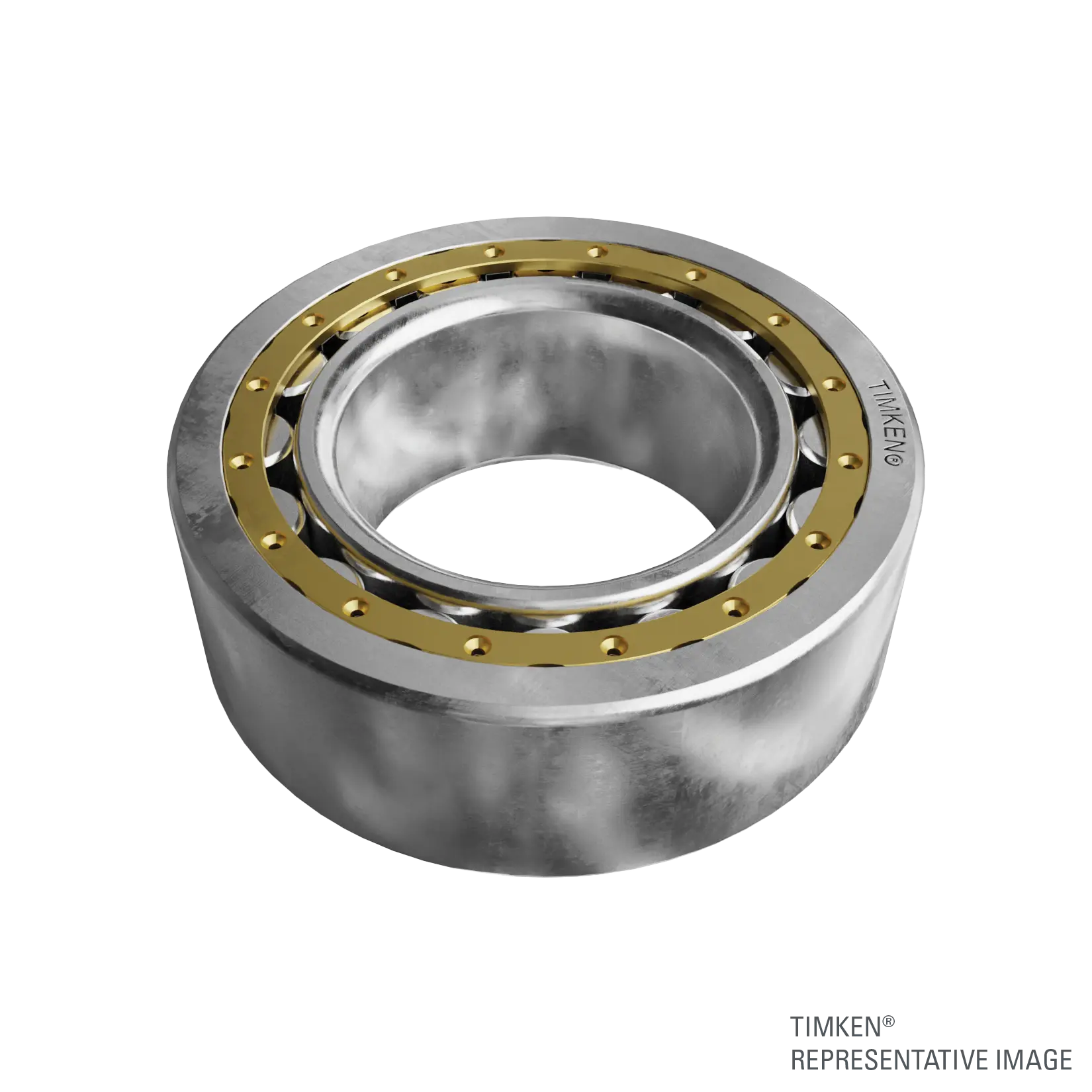

| Variant / construction | Cylindrical 1-Row | |
| Bore diameter | d | 210 mm |
| Outside diameter | D | 340 mm |
| Width | B | 95.25 mm |
| Basic dynamic load rating | C | 1390 kN |
| Basic static load rating | C0 | 2020 kN |
| Mass | ≈m | 34.14 kg |
| Sealing | Open | |
| Cage | Window Brass cage |
Calculation Factors6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| K Factor | 0.00 | |
| Y1 Factor | 0.00 | |
| Y2 Factor | 0.00 | |
| Y0 Factor | 0.00 | |
| E Factor | 0.00 | |
| Cg Factor | 0.1580 |
Manufacturer Identity9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | Timken | |
| Material Number | 000000000100180966 | |
| World Assembly Part Number | 210RN91 | |
| Inner Ring Part Number | 210ARNT91 | |
| Outer Ring Part Number | 210ERNT91 | |
| Drawing Number | M901587 | |
| Upc | 0013992207890 | |
| Official Source System | CORE BP - DS DF | |
| Official Last Run | 2026-08-23T20:02:46.147 |
Product Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Type Description | Cylindrical 1-Row | |
| Construction | Single Row Cylindrical Roller Bearing | Imperial Series | 8.2677 in Bore | 13.3858 in OD | 3.7500 in Width | Open | Cylindrical Bore | Machined Window Brass Cage | R3 Clearance | |
| Number Of Rows | 1 | |
| Tapered Bore | N |
Technical Data10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Overall Width | 0.000 mm | |
| Radial Rating | 1,390,000 N | |
| Axial Rating | 0 N | |
| Dynamic Rating C1 | 1,390,000 N | |
| Dynamic Rating C90 | 0 N | |
| Dynamic Axial Rating Ca90 | 0 N | |
| Dynamic Axial Rating Ca1 | 0 N | |
| Static Radial Rating C0 | 2,020,000 N | |
| Extended Dynamic Rating Ce | 0 N | |
| Static Axial Rating C0A | 0 N |
