Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications12 parameters
| Parameter | Symbol | Value |
|---|---|---|

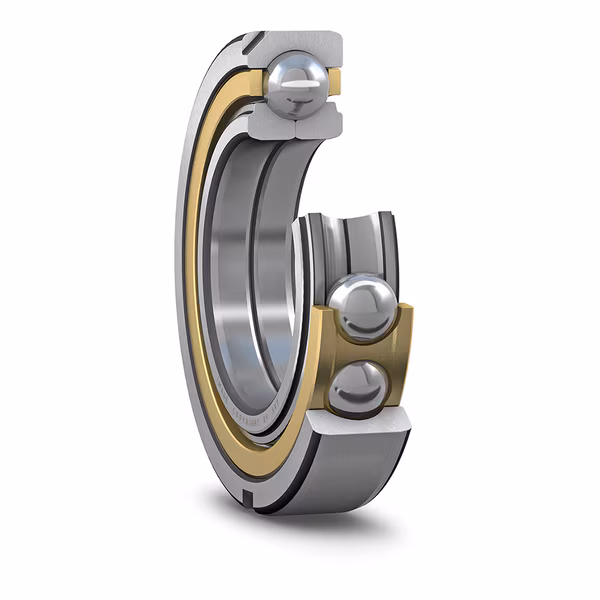

| Variant / construction | Angular contact ball bearings | |
| Bore diameter | d | 85 mm |
| Outside diameter | D | 150 mm |
| Width | B | 28 mm |
| Basic dynamic load rating | C | 156 kN |
| Basic static load rating | C0 | 173 kN |
| Limiting speed | nG | 7500 r/min |
| Mass | ≈m | 2.22 kg |
| Sealing | Without | |
| Cage | Machined brass | |
| Bearing material | Bearing steel | |
| Lubricant | None |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 85.0 mm | |
| Outside diameter | 150.0 mm | |
| Width | 28.0 mm | |
| Contact angle | 35.0 ° |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Angular contact ball bearings | |
| Official taxonomy path | /products/rolling-bearings/ball-bearings/angular-contact-ball-bearings/four-point-contact-ball-bearings | |
| Structure group ID | BAQ_001 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 2.22 kg | |
| eClass code | 23-05-08-05 | |
| UNSPSC code | 31171538 |
Performance4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 156.0 kN | |
| Basic static load rating | 173.0 kN | |
| Limiting speed | 7500.0 r/min | |
| SKF performance class | SKF Explorer |
Properties14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Contact type | Four-point contact | |
| Number of rows | 1 | |
| Locating feature, bearing outer ring | Locating slot | |
| Ring type | Two-piece inner ring and one-piece outer ring | |
| Cage | Machined brass | |
| Matched arrangement | No | |
| Universal matching bearing | No | |
| Axial internal clearance | C4 | |
| Material, bearing | Bearing steel | |
| Coating | Without | |
| Sealing | Without | |
| Lubricant | None | |
| Relubrication feature | Without | |
| Indicative carbon footprint for new product | 8.2 kg CO 2 e |
