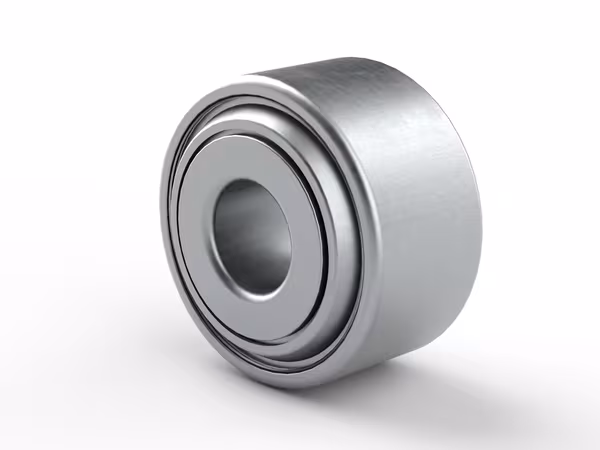

SKF PER.W5204RPP58-A Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals MANUFACTURER PRODUCT VIEW
SKF / Angular contact ball bearings

SKF PER.W5204RPP58-A

Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
Bore diameterd
16.027 mm
Outside diameterD
45.225 mm
Dynamic load ratingC
16.3 kN
Static load ratingC0
10.9 kN
Mass≈m
0.2 kg
Bore diameter
16.027 mm
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications7 parameters
Core specifications
ParameterSymbolValue
Variant / constructionAngular contact ball bearings
Bore diameterd16.027 mm
Outside diameterD45.225 mm
Basic dynamic load ratingC16.3 kN
Basic static load ratingC010.9 kN
Mass≈m0.2 kg
LubricantGrease
Dimensions2 parameters
Dimensions
ParameterSymbolValue
Bore diameter16.027 mm
Outside diameter45.225 mm
Product identity5 parameters
Product identity
ParameterSymbolValue
Official product categoryAngular contact ball bearings
Official taxonomy path/products/rolling-bearings/ball-bearings/angular-contact-ball-bearings/double-row-angular-contact-ball-bearings
Structure group IDBA2_001
Available from SKFYes
RemanufacturableNo
Logistics1 parameter
Logistics
ParameterSymbolValue
Product net weight0.2 kg
Performance2 parameters
Performance
ParameterSymbolValue
Basic dynamic load rating16.3 kN
Basic static load rating10.9 kN
Properties4 parameters
Properties
ParameterSymbolValue
Number of rows2
Sealing typeContact
LubricantGrease
Indicative carbon footprint for new product0.74 kg CO 2 e

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
SKF PER.W5204RPP58-A
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →

Previous product← SKF PER.W5204RP52-D Double row angular contact ball bearing
Next productSKF PER.W5204RRY72 Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals →
Related products

Similar Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals

View all SKF products in this category →

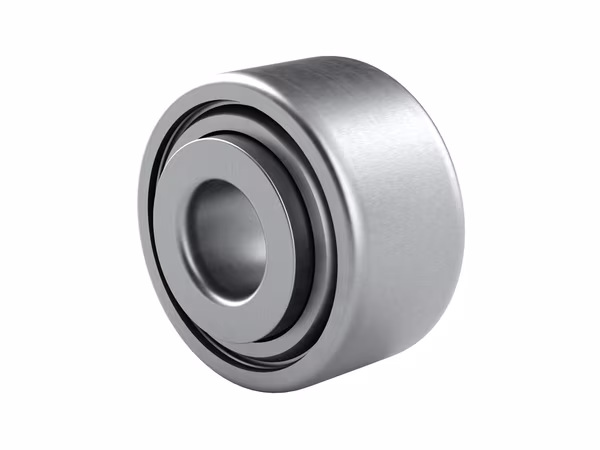

PER.5204RRY2↗
