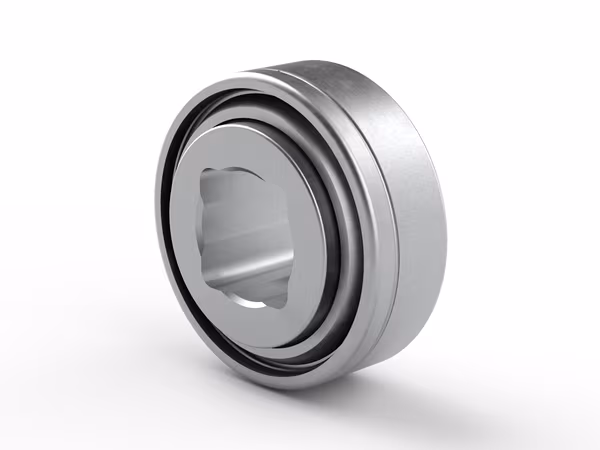

SKF PER.GW211SPP17-A Special ball bearing with square bore, cylindrical outer surface and high contamination resistant 3-lip seals

MANUFACTURER PRODUCT VIEW

SKF / Deep groove ball bearings

SKF PER.GW211SPP17-A

Special ball bearing with square bore, cylindrical outer surface and high contamination resistant 3-lip seals technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 38.887 mm
Outside diameterD: 100 mm
WidthB: 44.45 mm
Dynamic load ratingC: 43.4 kN
Static load ratingC0: 29.2 kN
Mass≈m: 1.33 kg

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications7 parameters

Core specifications
Parameter	Symbol	Value
Variant / construction		Deep groove ball bearings
Bore diameter	d	38.887 mm
Outside diameter	D	100 mm
Width	B	44.45 mm
Basic dynamic load rating	C	43.4 kN
Basic static load rating	C0	29.2 kN
Mass	≈m	1.33 kg

Dimensions3 parameters

Dimensions
Parameter	Symbol	Value
Bore diameter		38.887 mm
Outside diameter		100.0 mm
Width		44.45 mm

Product identity4 parameters

Product identity
Parameter	Symbol	Value
Official product category		Deep groove ball bearings
Official taxonomy path		/products/rolling-bearings/ball-bearings/deep-groove-ball-bearings
Available from SKF		Yes
Remanufacturable		No

Logistics1 parameter

Logistics
Parameter	Symbol	Value
Product net weight		1.33 kg

Performance2 parameters

Performance
Parameter	Symbol	Value
Basic dynamic load rating		43.4 kN
Basic static load rating		29.2 kN

Properties2 parameters

Properties
Parameter	Symbol	Value
Bore type		Square
Indicative carbon footprint for new product		4.9 kg CO 2 e

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: SKF PER.GW211SPP17-A
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
