SKF PER.206HRR6 Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals MANUFACTURER PRODUCT VIEW
SKF / Deep groove ball bearings

SKF PER.206HRR6

Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available
Bore diameterd
25.425 mm
Outside diameterD
62 mm
WidthB
24 mm
Dynamic load ratingC
19.5 kN
Static load ratingC0
11.3 kN
Mass≈m
0.259 kg
Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications7 parameters
Core specifications
ParameterSymbolValue
Variant / constructionDeep groove ball bearings
Bore diameterd25.425 mm
Outside diameterD62 mm
WidthB24 mm
Basic dynamic load ratingC19.5 kN
Basic static load ratingC011.3 kN
Mass≈m0.259 kg
Dimensions3 parameters
Dimensions
ParameterSymbolValue
Bore diameter25.425 mm
Outside diameter62.0 mm
Width24.0 mm
Product identity4 parameters
Product identity
ParameterSymbolValue
Official product categoryDeep groove ball bearings
Official taxonomy path/products/rolling-bearings/ball-bearings/deep-groove-ball-bearings
Available from SKFYes
RemanufacturableNo
Logistics1 parameter
Logistics
ParameterSymbolValue
Product net weight0.259 kg
Performance2 parameters
Performance
ParameterSymbolValue
Basic dynamic load rating19.5 kN
Basic static load rating11.3 kN
Properties2 parameters
Properties
ParameterSymbolValue
Bore typeHexagonal
Indicative carbon footprint for new product0.96 kg CO 2 e

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity
SKF PER.206HRR6
Document matching
Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.

Look up another model or check drawing requirements →

Previous product← SKF 306 NR Deep groove ball bearing with filling slots and snap ring
Next productSKF PER.206HRRB6 Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals →
Related products

Similar Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals

View all SKF products in this category →
PER.206HPP3↗
Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals

SKF PER.206HPP3

12 technical parameters

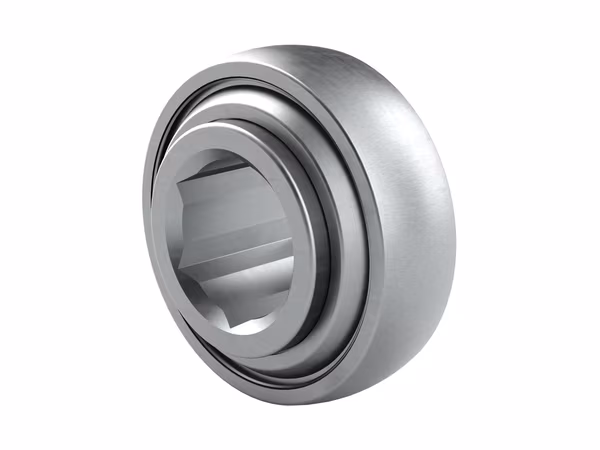

PER.206HRRB6↗
Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals

SKF PER.206HRRB6

12 technical parameters

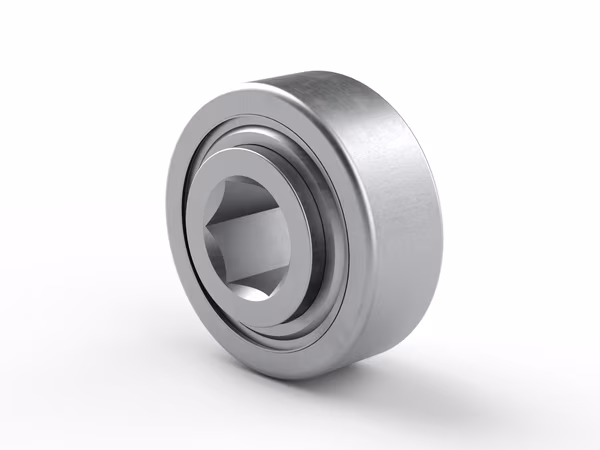

PER.G207HRR28↗
