Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|

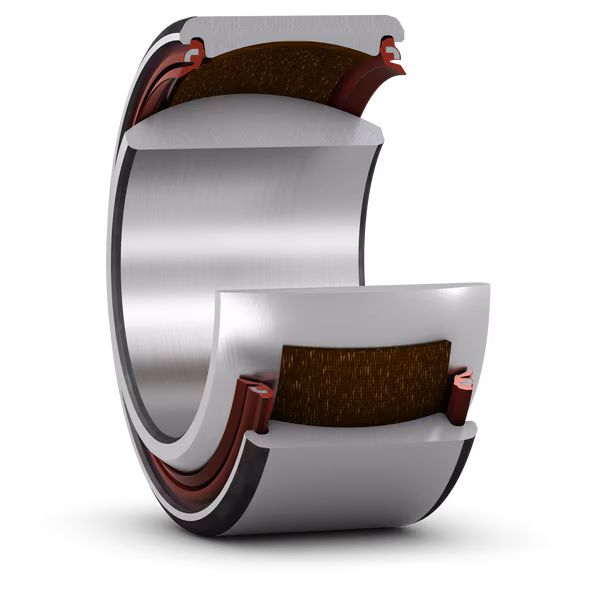

| Variant / construction | Radial spherical plain bearings | |
| Bore diameter | d | 31.75 mm |
| Outside diameter | D | 50.8 mm |
| Width | B | 27.762 mm |
| Basic dynamic load rating | C | 129 kN |
| Basic static load rating | C0 | 260 kN |
| Mass | ≈m | 0.22 kg |
| Sealing | Seal on both sides |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 31.75 mm | |
| Outside diameter | 50.8 mm | |
| Width, inner ring | 27.762 mm | |
| Width, outer ring | 23.8 mm |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Radial spherical plain bearings | |
| Official taxonomy path | /products/plain-bearings/spherical-plain-bearings-rod-ends/radial | |
| Structure group ID | BLR_001_101 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Engineering — Abutment dimensions6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Abutment diameter shaft | d a | min. 35 mm |
| Abutment diameter shaft | d a | max. 36.1 mm |
| Abutment diameter housing | D a | min. 45.9 mm |
| Abutment diameter housing | D a | max. 46.4 mm |
| Fillet radius shaft | r a | max. 0.6 mm |
| Fillet radius housing | r b | max. 1 mm |
Engineering — Calculation data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | C | 129 kN |
| Basic static load rating | C 0 | 260 kN |
| Specific dynamic load factor | K | 150 N/mm² |
| Specific static load factor | K 0 | 300 N/mm² |
Engineering — Dimensions8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 31.75 mm |
| Outside diameter | D | 50.8 mm |
| Width | B | 27.762 mm |
| Width outer ring | C | 23.8 mm |
| Angle of tilt | α | 6 ° |
| Raceway diameter inner ring | d k | 45.593 mm |
| Chamfer dimension bore | r 1 | min. 0.6 mm |
| Chamfer dimension outer ring | r 2 | min. 1 mm |
Engineering — Engineering specifications6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Maintenance | Maintenance-free | |
| Sliding contact surface combination | Steel/PTFE fabric | |
| Material, inner ring | Bearing steel | |
| Material, outer ring | Bearing steel | |
| Sealing | Seal on both sides | |
| Sealing type | Triple-lip |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.22 kg | |
| eClass code | 23-05-01-06 | |
| UNSPSC code | 31171515 |
Performance2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 129.0 kN | |
| Basic static load rating | 260.0 kN |
Properties7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Sliding contact surface combination | Steel/PTFE fabric | |
| Material, inner ring | Bearing steel | |
| Material, outer ring | Bearing steel | |
| Maintenance | Maintenance-free | |
| Sealing | Seal on both sides | |
| Sealing type | Triple-lip | |
| Relubrication feature | Without |
