Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|

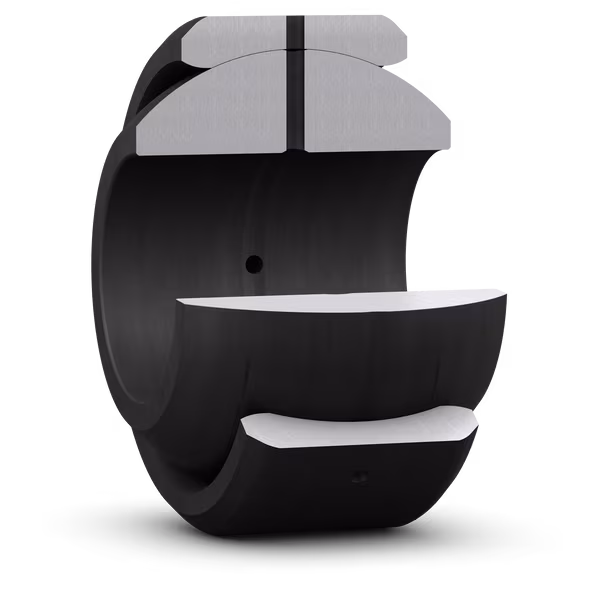

| Variant / construction | Radial spherical plain bearings | |
| Bore diameter | d | 25.4 mm |
| Outside diameter | D | 53.975 mm |
| Basic dynamic load rating | C | 93 kN |
| Basic static load rating | C0 | 280 kN |
| Mass | ≈m | 0.37 kg |
| Sealing | Without |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 25.4 mm | |
| Outside diameter | 53.975 mm | |
| Width, inner ring | 34.925 mm | |
| Width, outer ring | 25.019 mm |
Product identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Radial spherical plain bearings | |
| Official taxonomy path | /products/plain-bearings/spherical-plain-bearings-rod-ends/radial | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.37 kg | |
| eClass code | 23-05-01-06 | |
| UNSPSC code | 31171515 |
Performance2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 93.0 kN | |
| Basic static load rating | 280.0 kN |
Properties4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Material, inner ring | Bearing steel | |
| Material, outer ring | Bearing steel | |
| Sealing | Without | |
| Relubrication feature | With |
