Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|

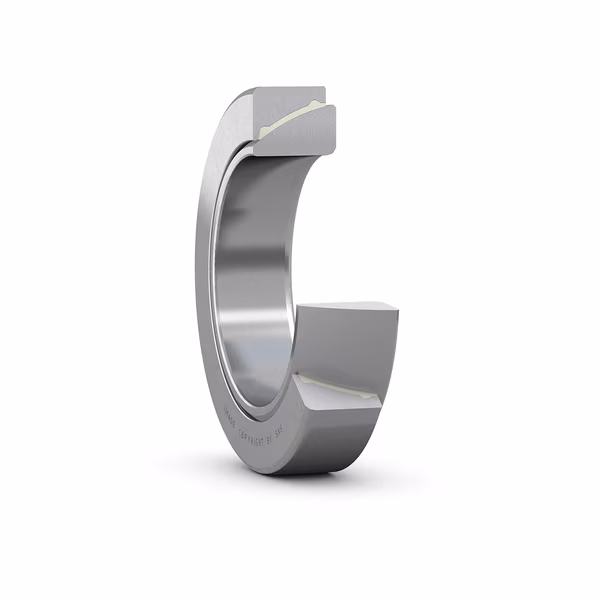

| Variant / construction | Angular contact spherical plain bearings | |
| Bore diameter | d | 40 mm |
| Outside diameter | D | 80 mm |
| Basic dynamic load rating | C | 57 kN |
| Basic static load rating | C0 | 91.5 kN |
| Mass | ≈m | 0.629 kg |
| Sealing | Without |
Dimensions4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | 40.0 mm | |
| Outside diameter | 80.0 mm | |
| Width, inner ring | 23.0 mm | |
| Width, outer ring | 23.0 mm |
Product identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official product category | Angular contact spherical plain bearings | |
| Official taxonomy path | /products/plain-bearings/spherical-plain-bearings-rod-ends/angular-contact | |
| Structure group ID | BLA_001 | |
| Available from SKF | Yes | |
| Remanufacturable | No |
Logistics3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Product net weight | 0.629 kg | |
| eClass code | 23-05-01-06 | |
| UNSPSC code | 31171515 |
Performance2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Basic dynamic load rating | 57.0 kN | |
| Basic static load rating | 91.5 kN |
Properties6 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Sliding contact surface combination | Steel/PTFE FRP | |
| Material, inner ring | Bearing steel | |
| Material, outer ring | Bearing steel | |
| Maintenance | Maintenance-free | |
| Sealing | Without | |
| Relubrication feature | Without |
