Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Stainless series pillow block type | |
| Bore diameter | d | 25 mm |
| Width | B | 34.1 mm |
| Height | H | 36.5 mm |
| Basic dynamic load rating | C | 11.9 kN |
| Basic static load rating | C0 | 6.3 kN |
| Fatigue load limit | Pu | 0.286 kN |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 100-130-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Ball bearing units - Stainless series pillow block type | |
| Official Classification 1 | Ball bearing units / Stainless series pillow block type |

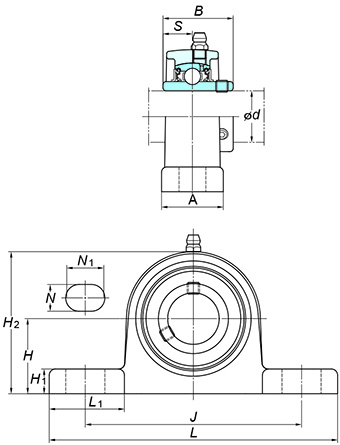

Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 25 mm | |
| H | 36.5 mm | |
| L | 105 mm | |
| A | 140 mm | |
| J | 30 mm | |
| N | 13 mm | |
| N1 | 19 mm | |
| H1 | 12 mm | |
| H2 | 69 mm | |
| B | 34.1 mm | |
| S | 14.3 mm | |
| Bolt Size | M10 | |
| Basic Load Ratings : Cr | 11.9 kN | |
| Basic Load Ratings : C0R | 6.30 kN | |
| Fatigue Load Limit : Cu | 0.286 kN | |
| Factor : F0 | 13.9 |
