Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Stainless series rhombic-flanged type | |
| Bore diameter | d | 50 mm |
| Width | B | 51.6 mm |
| Height | H | 197 mm |
| Basic dynamic load rating | C | 29.8 kN |
| Basic static load rating | C0 | 18.6 kN |
| Fatigue load limit | Pu | 0.845 kN |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 100-140-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Ball bearing units - Stainless series rhombic-flanged type | |
| Official Classification 1 | Ball bearing units / Stainless series rhombic-flanged type |

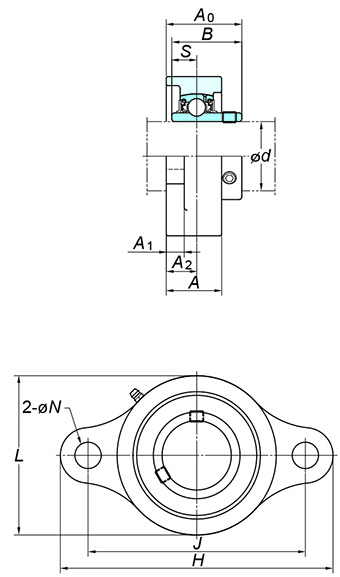

Technical Data16 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 50 mm | |
| H | 197 mm | |
| L | 106 mm | |
| A | 40 mm | |
| J | 157 mm | |
| N | 19 mm | |
| A1 | 13 mm | |
| A2 | 22 mm | |
| A0 | 54.6 mm | |
| B | 51.6 mm | |
| S | 19 mm | |
| Bolt Size | M16 | |
| Basic Load Ratings : Cr | 29.8 kN | |
| Basic Load Ratings : C0R | 18.6 kN | |
| Fatigue Load Limit : Cu | 0.845 kN | |
| Factor : F0 | 14.4 |
