Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Pillow block type / Set screw locking | |
| Bore diameter | d | 90 mm |
| Width | B | 96 mm |
| Height | H | 101.6 mm |
| Basic dynamic load rating | C | 96.1 kN |
| Basic static load rating | C0 | 71.5 kN |
| Fatigue load limit | Pu | 2.91 kN |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 100-010-010 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Ball bearing units - Pillow block type - Set screw locking | |
| Official Classification 1 | Ball bearing units / Pillow block type / Set screw locking |

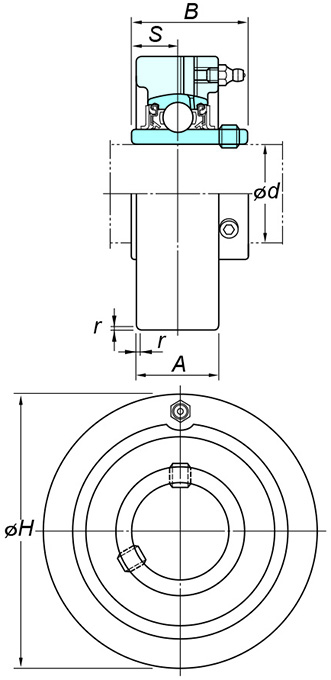

Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 90 mm | |
| H | 101.6 mm | |
| L | 327 mm | |
| A | 88 mm | |
| J | 262 mm | |
| N | 27 mm | |
| N1 | 40 mm | |
| H1 | 33 mm | |
| H2 | 198 mm | |
| L1 | 94 mm | |
| B | 96 mm | |
| S | 39.7 mm | |
| Bolt Size | M22 | |
| Basic Load Ratings : Cr | 96.1 kN | |
| Basic Load Ratings : C0R | 71.5 kN | |
| Fatigue Load Limit : Cu | 2.91 kN | |
| Factor : F0 | 14.5 | |
| Nipple Size | R1/8 |
