Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Light duty rhombic-flanged type | |
| Bore diameter | d | 20 mm |
| Height | H | 90 mm |
| Basic dynamic load rating | C | 12.8 kN |
| Basic static load rating | C0 | 6.65 kN |
| Fatigue load limit | Pu | 0.302 kN |
| Mass | ≈m | 0.33 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 100-100-000 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|

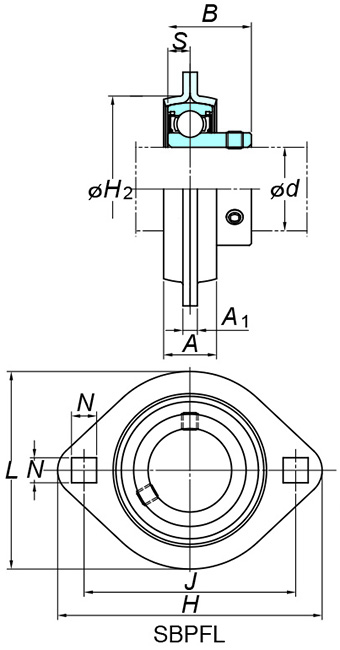

| Official Category Path | Ball bearing units - Light duty rhombic-flanged type | |
| Official Classification 1 | Ball bearing units / Light duty rhombic-flanged type |
Technical Data17 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 20 mm | |
| H | 90 mm | |
| L | 60 mm | |
| A | 20 mm | |
| J | 71.5 mm | |
| N | 10 mm | |
| A1 | 11 mm | |
| A2 | 11 mm | |
| S | 7 mm | |
| Blf A0 | 29 mm | |
| Blf B | 25 mm | |
| Bolt Size | M8 | |
| Basic Load Ratings : Cr | 12.8 kN | |
| Basic Load Ratings : C0R | 6.65 kN | |
| Fatigue Load Limit : Cu | 0.302 kN | |
| Factor : F0 | 13.2 | |
| (Refer.)Unit Mass Blf | 0.33 kg |
