Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Thrust needle roller bearings / Metric series, separate type / Thrust needle roller and cage assembly(AXK,FNT) | |
| Fatigue load limit | Pu | 59 kN |
| Limiting speed | nG | 2800 r/min |
| Mass | ≈m | 0.117 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 090-040-010 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Needle roller bearings - Thrust needle roller bearings - Metric series, separate type - Thrust needle roller and cage assembly(AXK,FNT) | |
| Official Classification 1 | Needle roller bearings / Thrust needle roller bearings / Metric series, separate type / Thrust needle roller and cage assembly(AXK,FNT) |

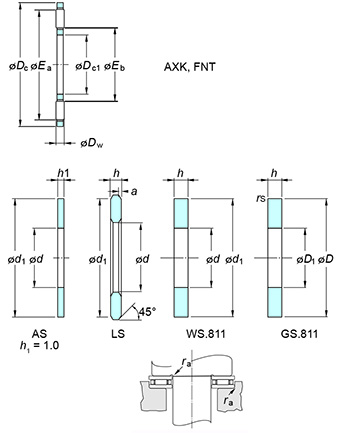

Technical Data20 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Dc1 | 110 mm | |
| Dc | 145 mm | |
| Dw | 4 mm | |
| Ea | 143.0 mm | |
| Eb | 115.0 mm | |
| Ra(Max.) | 0.6 mm | |
| Basic Load Ratings Ca | 93.2 kN | |
| Basic Load Ratings C0A | 591 kN | |
| Fatigue Load Limit : Cu | 59.0 kN | |
| Limiting Speeds(Oil Lub.) | 2800 min-1 | |
| (Refer.)Mass | 0.117 kg | |
| Washer Dimensions : D,D1 | 145 mm | |
| Thin Washer Dimensions : H1 | 1.00 mm | |
| Thin Washer No. | AS110145 | |
| Thin (Refer.)Mass | 0.055 kg | |
| Heavy(Ls) Washer Dimensions : H | 7.00 mm | |
| Heavy(Ls) Washer Dimensions : A | 1.50 mm | |
| Heavy(Ls) Washer No. | LS110145 | |
| Heavy(Ls) (Refer.)Mass | 0.373 kg | |
| Heavy Washer Dimensions : H | 7.00 mm |
