Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Variant / construction | Single-row / Metric series | |
| Bore diameter | d | 200 mm |
| Outside diameter | D | 310 mm |
| Width | B | 70 mm |
| Basic dynamic load rating | C | 949 kN |
| Basic static load rating | C0 | 1340 kN |
| Fatigue load limit | Pu | 146 kN |
| Limiting speed | nG | 1100 r/min |
| Mass | ≈m | 19.1 kg |
Manufacturer Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Brand | KOYO | |
| Official Class Key | 050-010-010 |
Classification2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Official Category Path | Tapered roller bearings - Single-row - Metric series | |
| Official Classification 1 | Tapered roller bearings / Single-row / Metric series |

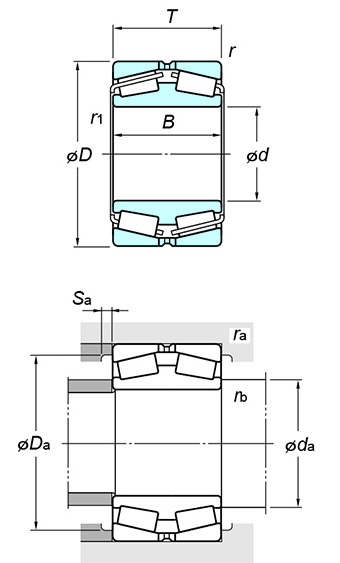

Technical Data25 parameters
| Parameter | Symbol | Value |
|---|---|---|
| d | 200 mm | |
| D | 310 mm | |
| T | 70 mm | |
| B | 70 mm | |
| C | 53 mm | |
| R(Min.) | 3 mm | |
| R1(Min.) | 2.5 mm | |
| Basic Load Ratings : Cr | 949 kN | |
| Basic Load Ratings : C0R | 1340 kN | |
| Fatigue Load Limit : Cu | 146 kN | |
| Limiting Speeds(Grease Lub.) | 1100 min-1 | |
| Limiting Speeds(Oil Lub.) | 1400 min-1 | |
| Load Center Spread : A | 66.9 mm | |
| Constant E | 0.43 | |
| Axial Load Factors : Y1 | 1.39 | |
| Axial Load Factors : Y0 | 0.77 | |
| Da(Min.) | 273 mm | |
| Db(Max.) | 221 mm | |
| Da(Max.) | 298 mm | |
| Db(Min.) | 297 mm | |
| Sa(Min.) | 11 mm | |
| Sb(Min.) | 17 mm | |
| Ra(Max.) | 2.5 mm | |
| Rb(Max.) | 2 mm | |
| Mass(Refer.) | 19.1 kg |
