Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | ZLE5207 | |
| Bore diameter | d | 35 mm |
| Outside diameter | D | 80 mm |
| Width | B | 99 mm |
| Basic dynamic load rating | C | 30 kN |
| Basic static load rating | C0 | 25 kN |
| Fatigue load limit | Pu | 1.32 kN |
| Mass | ≈m | 1.297 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 400835 | |
| Brand | INA | |
| Base Type | ZLE5207 | |
| Old Designation | ["ZL 5207 KDDU AH07"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

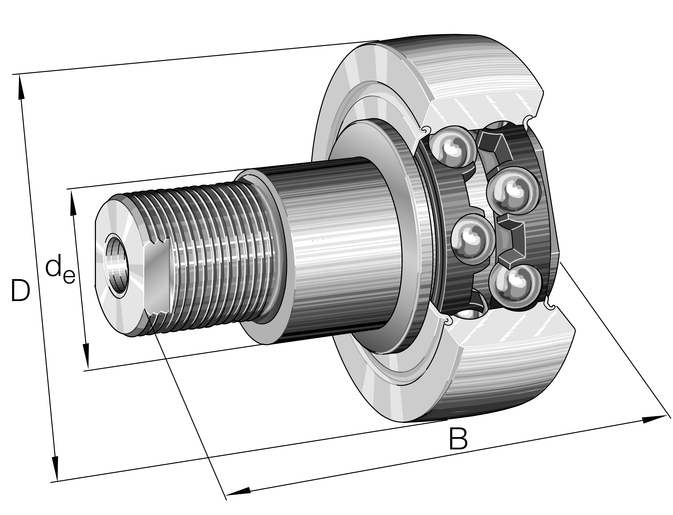

| Construction | Stud type track rollers ZLE52..-2Z, double row self-retaining angular contact ball bearings with particularly thick-walled outer ring, ball and cage assembly, eccentric collar and with a solid, long roller stud with external thread, axial guidance of outer ring is provided by the balls, sealing shield on both sides, mounting aid on the face and bolt sides: spanner flat, relubricatable | |
| Short Description | Stud type track roller |
Technical Data22 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Diameter Of Eccentric (De) | 35 mm | |
| Outside Diamater (D) | 80 mm | |
| Total Width (B) | 99 mm | |
| Basic Dynamic Load Rating, Radial (Cr W) | 30,000 N | |
| Basic Static Load Rating, Radial (C0R W) | 25,000 N | |
| Eccentricity (E) | 1.5 mm | |
| Maximum Witdh Of Thrust Washer (B1 Max) | 35 mm | |
| Minimum Thread Length (Ig Min) | 32 mm | |
| Bolt/Stud Length Effectively (B2) | 64 mm | |
| Width Of Flats (W) | 40 mm | |
| Width, Outer Ring (C) | 27 mm | |
| Protrusion Outer Ring To Thrust Washer (C1) | 3 mm | |
| Speed On Permanent Grease Lubrication (Nd G) | 4,650 1/min | |
| Permissible Dynamic Load Outer Ring, Radial (Fr Per) | 22,100 N | |
| Stop Diameter Of Thrust Washer (D2) | 45 mm | |
| Radius Of Outer Ring Outside Profile (R) | 500 mm | |
| Thread Length (Inner) (Lg) | 8 mm | |
| Tightening Torque Nut (Ma) | 540 Nm | |
| Width Of Flats (W1) | 27 mm | |
| Fatigue Load Limit, Radial (Cur W) | 1,320 N | |
| Minimum Chamfer Dimension (Rmin) | 1.1 mm | |
| Width, Eccentric (Be) | 29 mm |
