Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | ZKLR0828 | |
| Bore diameter | d | 8 mm |
| Outside diameter | D | 23.9 mm |
| Width | B | 15.5 mm |
| Mass | ≈m | 0.035698 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 404059 | |
| Brand | INA | |
| Base Type | ZKLR0828 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

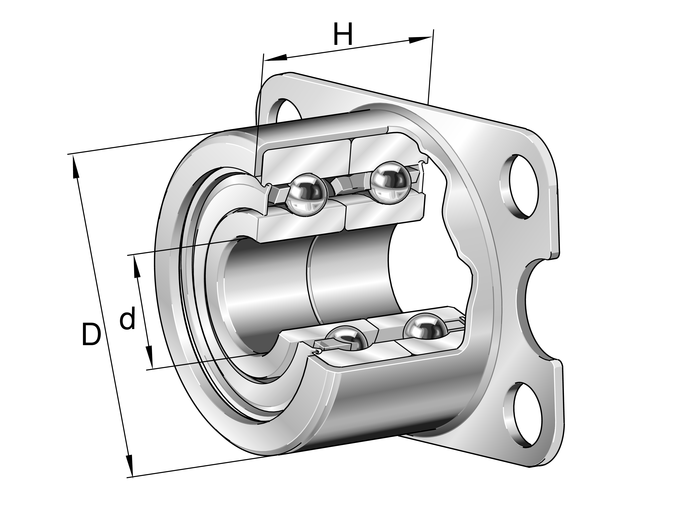

| Construction | Angular contact ball bearing units ZKLR..-2Z, double direction, for screw mounting, gap seals on both sides | |
| Short Description | Flanged housing unit |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 15.5 mm | |
| Outside Diameter (D) | 23.9 mm | |
| Bore Diameter (D) | 8 mm | |
| Flange Width (A1) | 28 mm | |
| Height Flange (A2) | 35 mm |
