Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 1040 mm |
| Outside diameter | D | 1440 mm |
| Basic dynamic load rating | C | 45000 kN |
| Basic static load rating | C0 | 106000 kN |
| Fatigue load limit | Pu | 7500 kN |
| Limiting speed | nG | 620 r/min |
| Mass | ≈m | 5032.5 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1491173 | |
| Brand | INA | |
| Base Type | Z-517675.ZL |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

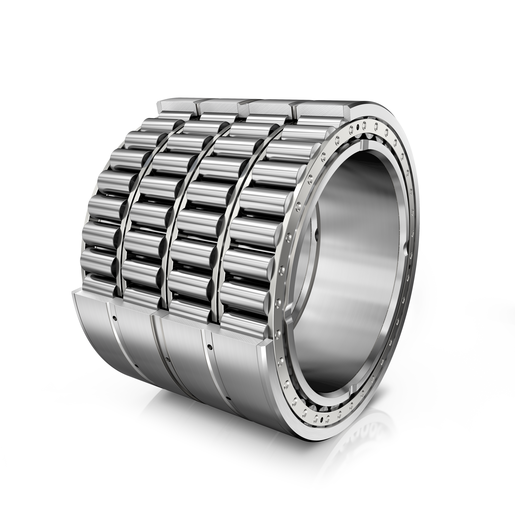

| Short Description | Cylindrical roller bearing |
Technical Data11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 1,040 mm | |
| Outside Diamater (D) | 1,440 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 45,000,000 N | |
| Basic Static Load Rating, Radial (C0R) | 106,000,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 620 1/min | |
| Axial Displacement (S) | 15 mm | |
| Total Width (Total Width) | 1,000 mm | |
| Minimum Chamfer Dimension (Rmin) | 7 mm | |
| Fatigue Load Limit, Radial (Cur) | 7,500,000 N |
