Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | YRTCM150 | |
| Bore diameter | d | 150 mm |
| Outside diameter | D | 240 mm |
| Width | B | 41 mm |
| Basic dynamic load rating | C | 74 kN |
| Basic static load rating | C0 | 146 kN |
| Limiting speed | nG | 800 r/min |
| Mass | ≈m | 5.5 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 397778 | |
| Brand | INA | |
| Base Type | YRTCM150 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

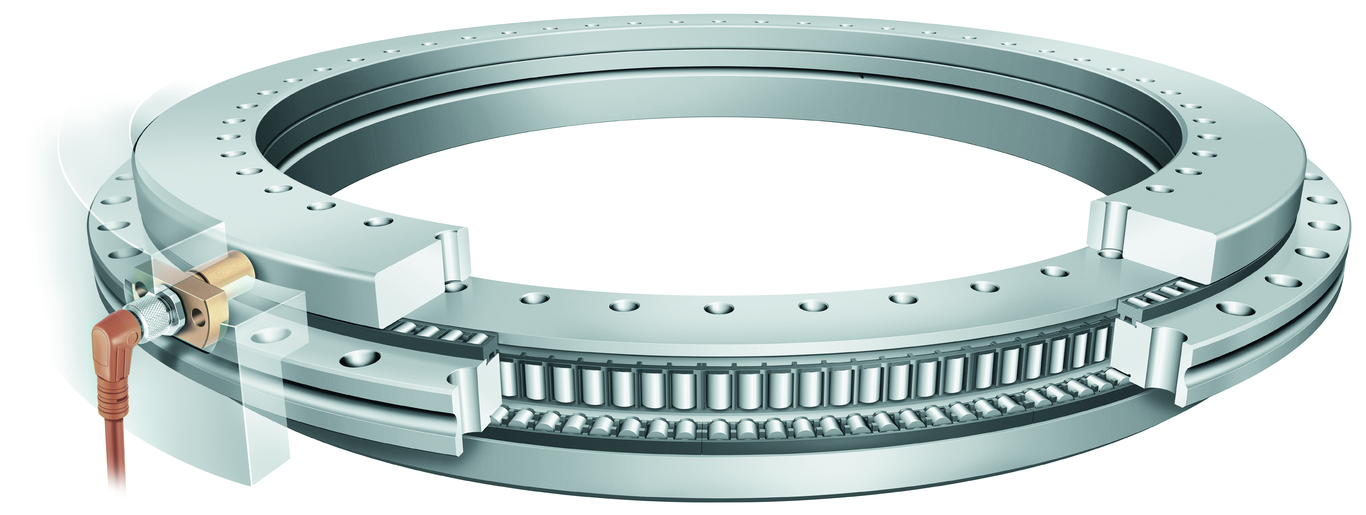

| Construction | Axial/radial bearings, double direction, screw mounting, with integrated angular measuring system | |
| Short Description | Axial/radial roller bearing |
Technical Data40 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 150 mm | |
| Outside Diamater (D) | 240 mm | |
| Total Height (H) | 41 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 74,000 N | |
| Basic Static Load Rating, Radial (C0R) | 146,000 N | |
| Basic Dynamic Load Rating, Axial (Ca) | 128,000 N | |
| Basic Static Load Rating, Axial (C0A) | 650,000 N | |
| Tilting Rigidity Of Bearing Position (Ckl) | 30,300 Nm/mrad | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 800 1/min | |
| Pitch Quantity (N) | 36 | |
| Bore Diameter Lower Tolerance (Bore Diamete) | -0.013 mm | |
| Width Of Outer Ring (C) | 12 mm | |
| Counterbore Diameter Of Fixing Holes (D2) | 11 mm | |
| Diameter Of Dimensional Scale On Shaft Locating Washer (Dm) | 213.82 mm | |
| Height Contact Face Outerring H1 Upper Tolerance (Height Conta) | 0.03 mm | |
| Height Contact Face Outerring H2 Lower Tolerance (Height Conta) | -0.02 mm | |
| Maximum Diameter Inner Ring (D1 Max) | 214.5 mm | |
| Bore Diameter Upper Tolerance (Bore Diamete) | 0 mm | |
| Height Contact Face Outerring H1 Lower Tolerance (Height Conta) | -0.03 mm | |
| Screw Tightening Torque (Ma) | 14 Nm | |
| Pitch Separation Angle (T) | 10 ° | |
| Height Contact Face Outer Ring (H1) | 27 mm | |
| Outside Diameter Lower Tolerance (Outside Diam) | -0.015 mm | |
| Fixing Holes Diameter Outer Ring (D3) | 7 mm | |
| Counterbore Depth Of Fixing Holes (A) | 6.2 mm | |
| Tilting Rigidity Of Rolling Element Set (Ckw) | 61,000 Nm/mrad | |
| Radial Rigidity Of Rolling Element Set (Crw) | 6,500 N/µm | |
| Bearing Friction Torque At 5 1/Min (Mr) | 4 Nm | |
| Pitch Circle Diameter Fixing Holes In Inner Ring (J) | 165 mm | |
| Axial Rigidity Of Bearing Position (Cal) | 7,600 N/µm | |
| Axial Rigidity Of Rolling Element Set (Cal) | 12,000 N/µm | |
| Fixing Holes Diameter Inner Ring (D1) | 7 mm | |
| Height Shaft Washer (Hm) | 10 mm | |
| Height Contact Face Outerring H2 Upper Tolerance (Height Conta) | 0.02 mm | |
| Pitch Circle Diameter Fixing Holes In Outer Ring (J1) | 225 mm | |
| Radial Rigidity Of Bearing Position (Crl) | 4,480 N/µm | |
| Height Contact Face Outer Ring (H2) | 14 mm | |
| Outside Diameter Upper Tolerance (Outside Diam) | 0 mm |
