INA TSWWZ12

Guideways, inch sizes technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Support Rail Width Bottom (B): 1.75 in
Distance Thread Ar (Min) (Ar Min): 2.96 in
Height Dimension (H4): 1.5 in
Distance Thread Al (Max) (Al Max): 5.5 in
Distance Thread Al (Min) (Al Min): 2.96 in
Height Dimension Tolerance Low (Tol A2): -0.002 in

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications1 parameter

Core specifications
Parameter	Symbol	Value
Series		TSUWZ12

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2260169
Brand		INA
Base Type		TSUWZ12

Product Identity1 parameter

Product Identity
Parameter	Symbol	Value
Short Description		Guideways, inch sizes

Technical Data21 parameters

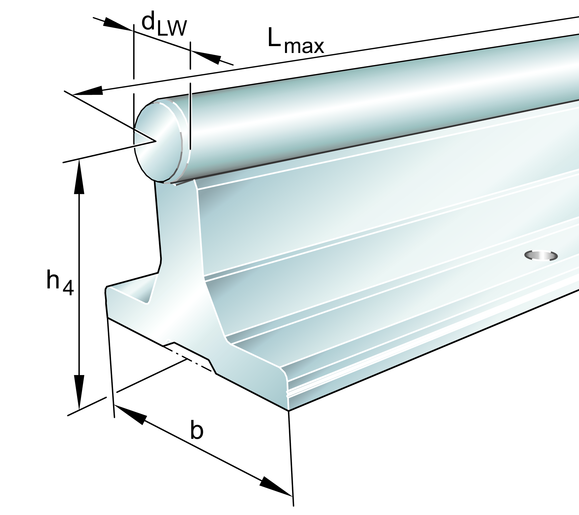

Technical Data
Parameter	Symbol	Value
Support Rail Width Bottom (B)		1.75 in
Distance Thread Ar (Min) (Ar Min)		2.96 in
Height Dimension (H4)		1.5 in
Distance Thread Al (Max) (Al Max)		5.5 in
Distance Thread Al (Min) (Al Min)		2.96 in
Height Dimension Tolerance Low (Tol A2)		-0.002 in
Height Dimension Tolerance High (Tol A2)		0.002 in
Support Rail Width Prism (B3)		0.38 in
Support Rail Width Stop Bar (A2)		0.875 in
Distance Jb Of Bore (Jb)		1.25 in
Height Dimension Tolerance High (Tol H4)		0.002 in
Height Dimension Tolerance Low (Tol H4)		-0.002 in
Depth Counterbore (H7)		0.22 in
Counterbore (K5)		0.375 in
Distance Thread Ar (Max) (Ar Max)		5.5 in
Support Rail Height Stop Bar (H1)		0.25 in
Connecting Bore (K6)		0.221 in
Adjacent Construction Bore (K3)		0.221 in
Shaft And Support Rail Unit Weight (M)		3.67 kg/m
Shaft And Support Rail Length Max. (Lmax)		204 in
Distance Radial Thread (Jl)		6 in

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA TSWWZ12
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
