Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications11 parameters
| Parameter | Symbol | Value |
|---|---|---|

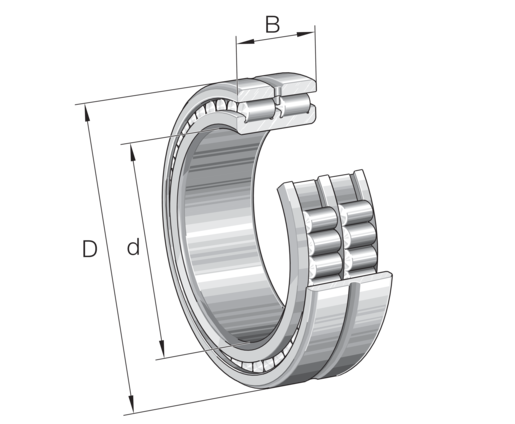

| Bore diameter | d | 200 mm |
| Outside diameter | D | 280 mm |
| Width | B | 80 mm |
| Basic dynamic load rating | C | 680 kN |
| Basic static load rating | C0 | 1440 kN |
| Fatigue load limit | Pu | 176 kN |
| Reference speed | nref | 820 r/min |
| Limiting speed | nG | 1310 r/min |
| Mass | ≈m | 14.812 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 376512 | |
| Brand | INA | |
| Base Type | SL024940 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Cylindrical roller bearing SL02..-A, full complement roller set, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type SL02 | |
| Short Description | Cylindrical roller bearing |
Technical Data19 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 200 mm | |
| Outside Diamater (D) | 280 mm | |
| Total Width (B) | 80 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 680,000 N | |
| Basic Static Load Rating, Radial (C0R) | 1,440,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Minimum Diameter Shaft Shoulder (Da) | 230.5 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 1,310 1/min | |
| Minimum Shaft Shoulder (Dc Min) | 230.5 mm | |
| Reference Speed (Nϑr) | 820 1/min | |
| Maximum Recess Radius (Ra Max) | 2.1 mm | |
| Maximum Rib Diameter Inner Ring (D1) | 230.5 mm | |
| Axial Displacement (S) | 5 mm | |
| Distance To Lubrication Hole (C) | 40 mm | |
| Minimum Chamfer Dimension (Rmin) | 2.1 mm | |
| Raceway Diameter Outer Ring (E) | 259.34 mm | |
| Minimum Diameter Of Housing Shoulder (De Min) | 259 mm | |
| Fatigue Load Limit, Radial (Cur) | 176,000 N |
