Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications10 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | SCE1212 | |
| Bore diameter | d | 19.05 mm |
| Outside diameter | D | 25.4 mm |
| Width | B | 19.05 mm |
| Basic dynamic load rating | C | 12.8 kN |
| Basic static load rating | C0 | 17.5 kN |
| Limiting speed | nG | 7800 r/min |
| Mass | ≈m | 0.02 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1066288 | |
| Brand | INA | |
| Base Type | SCE1212 |
Product Identity1 parameter
| Parameter | Symbol | Value |
|---|---|---|

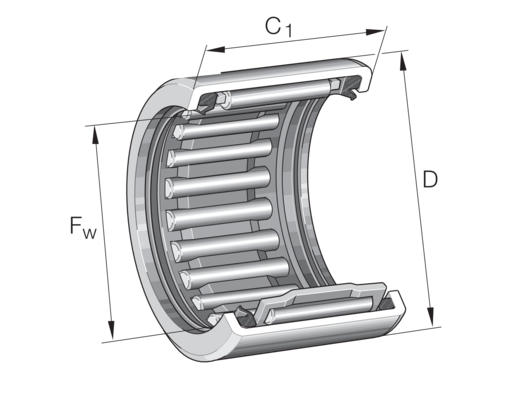

| Short Description | Drawn cup needle roller bearing open end |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Under Roller Diameter (Fw) | 19.05 mm | |
| Outside Diamater (D) | 25.4 mm | |
| Width (C) | 19.05 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 12,800 N | |
| Basic Static Load Rating, Radial (C0R) | 17,500 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Limiting Speed (Limiting Spe) | 7,800 1/min |
