Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RWU35 | |
| Width | B | 70 mm |
| Height | H | 55 mm |
| Mass | ≈m | 1.67 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1957850 | |
| Brand | INA | |
| Base Type | RWU35 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication | |
| Short Description | Recirculating roller bearing carriage |
Technical Data27 parameters
| Parameter | Symbol | Value |
|---|---|---|

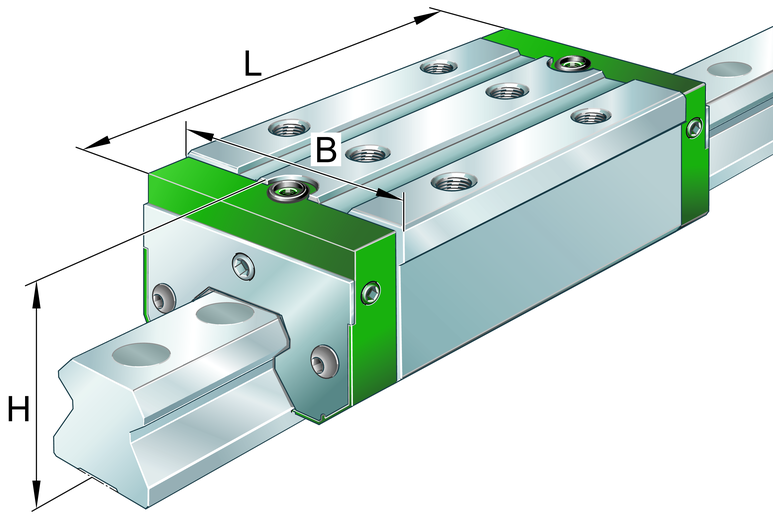

| Overall Length Carriage (L) | 122.9 mm | |
| Width Carriage (B) | 70 mm | |
| Height System (H) | 55 mm | |
| Dynamic Load Rating (C) | 59,000 N | |
| Basic Static Load Capacity (C0) | 140,000 N | |
| Max. Diameter Of Lubrication Hole In Adjacent Construction (N2) | 6 mm | |
| Free Space, System Dimension (H1) | 6.5 mm | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T N4) | 6 mm | |
| Static Moment About Y Axis (M0Y) | 2,150 Nm | |
| Height Of Bearing Housing (H5) | 10.8 mm | |
| Thread Depth (T5) | 10 mm | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T N3) | 6 mm | |
| Hole Spacing (Jb) | 50 mm | |
| Distance From Locating Edge To Hole (A2) | 10 mm | |
| Position Lubrication Connector (A3) | 13.6 mm | |
| Static Moment About X Axis (M0X) | 1,200 Nm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 18 mm | |
| Position Lubrication Connector (Jl6) | 30.4 mm | |
| Width Rail (B) | 34 mm | |
| Hole Spacing (Jl) | 50 mm | |
| Position Lubrication Connector (A4) | 12.6 mm | |
| Position Lubrication Connector (Jl5) | 20.3 mm | |
| Carrier Length (L1) | 85.2 mm | |
| Maximum Tightening Torque (G2 Ma) | 41 Nm | |
| Static Moment About Z Axis (M0Z) | 1,950 Nm | |
| Lubrication Connector (N4) | 6 mm | |
| Screw Head Length (Ls) | 2.2 mm |
