Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RWU25 | |
| Width | B | 70 mm |
| Height | H | 36 mm |
| Mass | ≈m | 0.68 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1954088 | |
| Brand | INA | |
| Base Type | RWU25 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

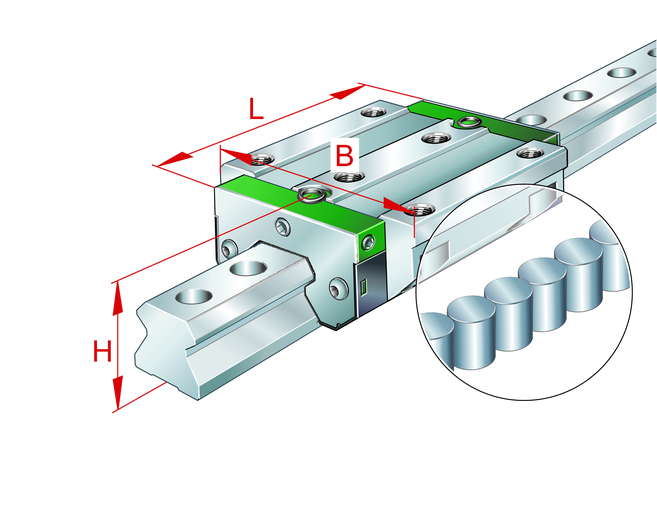

| Construction | Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication | |
| Short Description | Recirculating roller bearing carriage |
Technical Data26 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Overall Length Carriage (L) | 91 mm | |
| Width Carriage (B) | 70 mm | |
| Height System (H) | 36 mm | |
| Dynamic Load Rating (C) | 28,000 N | |
| Basic Static Load Capacity (C0) | 65,000 N | |
| Max. Diameter Of Lubrication Hole In Adjacent Construction (N2) | 3 mm | |
| Free Space, System Dimension (H1) | 6.5 mm | |
| Maximum Tightening Torque (K3 Ma) | 17 Nm | |
| Maximum Tightening Torque (K6 Ma) | 10 Nm | |
| Static Moment About Y Axis (M0Y) | 760 Nm | |
| Through Bore (D2) | 6.7 mm | |
| Height Of Bearing Housing (H5) | 5.25 mm | |
| Thread Depth (T5) | 10 mm | |
| Maximum Permissible Screw Depth For Lubrication Connectors (T N3) | 6 mm | |
| Hole Spacing (Jb) | 57 mm | |
| Distance From Locating Edge To Hole (A2) | 6.5 mm | |
| Position Lubrication Connector (A3) | 7.5 mm | |
| Static Moment About X Axis (M0X) | 350 Nm | |
| Distance From Locating Edge On Carriage To Locating Edge On Guideway (A1) | 23.5 mm | |
| Width Rail (B) | 23 mm | |
| Hole Spacing (Jl) | 45 mm | |
| Position Lubrication Connector (Jl5) | 14.5 mm | |
| Carrier Length (L1) | 65.6 mm | |
| Maximum Tightening Torque (G2 Ma) | 24 Nm | |
| Static Moment About Z Axis (M0Z) | 680 Nm | |
| Screw Head Length (Ls) | 2.2 mm |
