INA RWDR05-R-NBR

Radial rotary shaft seal technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 25 mm
Outside diameterD: 62 mm
WidthB: 6 mm
Mass≈m: 0.019 kg
Bore Diameter (D): 25 mm
Outside Diamater (D): 62 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications5 parameters

Core specifications
Parameter	Symbol	Value
Series		RWDR05
Bore diameter	d	25 mm
Outside diameter	D	62 mm
Width	B	6 mm
Mass	≈m	0.019 kg

Manufacturer Identity4 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		416625
Brand		INA
Base Type		RWDR05
X Life Marking		n.r.

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value

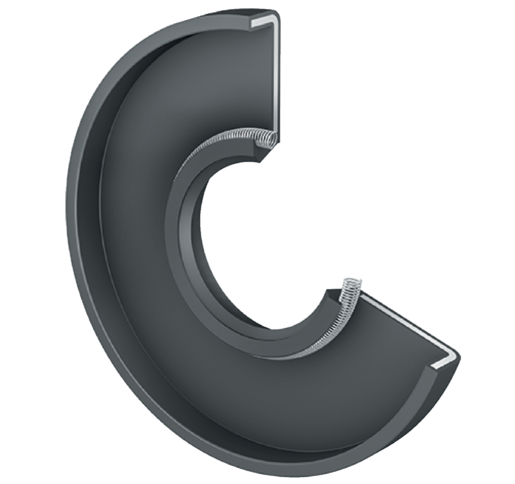

Construction		Radial rotary shaft seal RWDR..-R-NBR, seat outer ring
Short Description		Radial rotary shaft seal

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		25 mm
Outside Diamater (D)		62 mm
Total Width (B)		6 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RWDR05-R-NBR
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
