Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

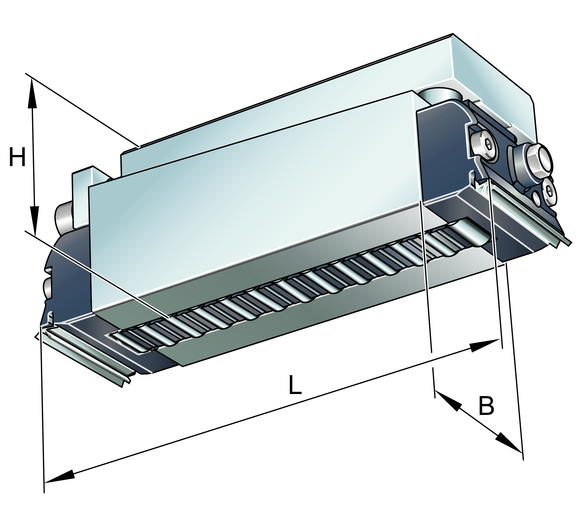

Core specifications4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RUSV42086 | |
| Width | B | 40 mm |
| Height | H | 42 mm |
| Mass | ≈m | 0.84 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 426009 | |
| Brand | INA | |
| Base Type | RUSV42086 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear roller bearings, with spacer elements, with integrated adjusting gib, RUSV..-KS | |
| Short Description | Linear recirculating roller bearing unit |
Technical Data15 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Total (Ltot) | 98 mm | |
| Total Width (B) | 40 mm | |
| Total Height (H) | 42 mm | |
| Dynamic Load Rating (C) | 76,000 N | |
| Basic Static Load Capacity (C0) | 113,000 N | |
| Mounting Dimension (E) | 23 mm | |
| Adjustment Screw Hexagon Socket (S1) | 6 mm | |
| Locking/Extraction Screw Hexagon Socket (S2) | 3 mm | |
| Max (L2) | 52.4 mm | |
| Length Of Return Unit (L4) | 54 mm | |
| Mounting Dimension (I) | 6 mm | |
| Screw Stroke A (Amax) | 10 mm | |
| Adjustment Per Screw Revolution (Adjustment P) | 0.05 mm | |
| Tightening Torque Fixing Screws (K Ma) | 17 Nm | |
| Adjustment Max (Δh) | 0.52 mm |
