Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications4 parameters

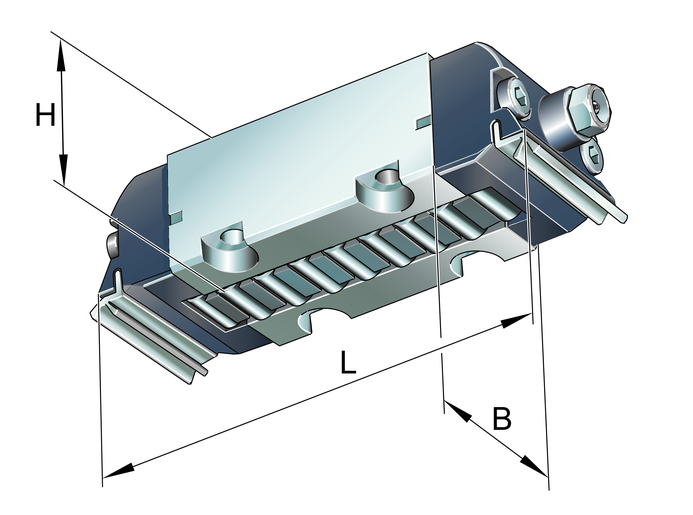

| Parameter | Symbol | Value |
|---|---|---|
| Series | RUS26102 | |
| Width | B | 40 mm |
| Height | H | 26 mm |
| Mass | ≈m | 0.62 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 425989 | |
| Brand | INA | |
| Base Type | RUS26102 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Linear roller bearings with spacer elements, with end face lubrication connectors RUS.. | |
| Short Description | Linear recirculating roller bearing unit |
Technical Data18 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Total (Ltot) | 114 mm | |
| Total Width (B) | 40 mm | |
| Total Height (H) | 26 mm | |
| Dynamic Load Rating (C) | 95,000 N | |
| Basic Static Load Capacity (C0) | 151,000 N | |
| Mounting Dimension (Jb) | 30 mm | |
| Mounting Dimension (L1) | 68.9 mm | |
| Mounting Dimension (H4) | 21 mm | |
| Lubrication Connection L S Tec (Ls) | 108 mm | |
| Tightening Torque (G1 Ma) | 17 Nm | |
| Tolerance (Tol Jl) | 0.1 mm | |
| Mounting Dimension (T5) | 10.2 mm | |
| Height Of Carriage (H1) | 0.2 mm | |
| Minimum Support Length (L4) | 79 mm | |
| Tolerance (Tol Jb) | 0.1 mm | |
| Mounting Dimension (Jl) | 44 mm | |
| Tightening Torque (Ma K3) | 5 Nm | |
| Lubrication Connection A 4 Tec (A4) | 13.5 mm |
