INA RUKS35-D-A-SR

Braking/clamping element technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Mass≈m: 2.44 kg

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications2 parameters

Core specifications
Parameter	Symbol	Value
Series		RUKS35
Mass	≈m	2.44 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		781141
Brand		INA
Base Type		RUKS35

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value

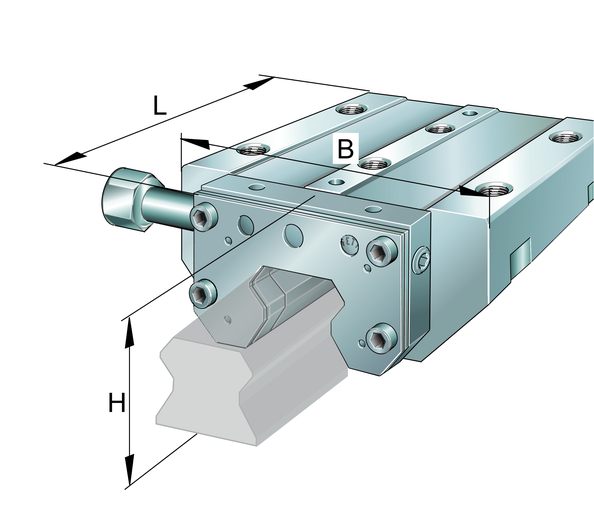

Construction		Clamping element RUKS..-D-A-SR,for linear recirculating roller bearing and guideway assembly, oil connector on side
Short Description		Braking/clamping element

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RUKS35-D-A-SR
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
