Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | FW25 | |
| Width | B | 60 mm |
| Mass | ≈m | 0.16 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 781022 | |
| Brand | INA | |
| Base Type | FW25 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | shaft support blocks with flange | |

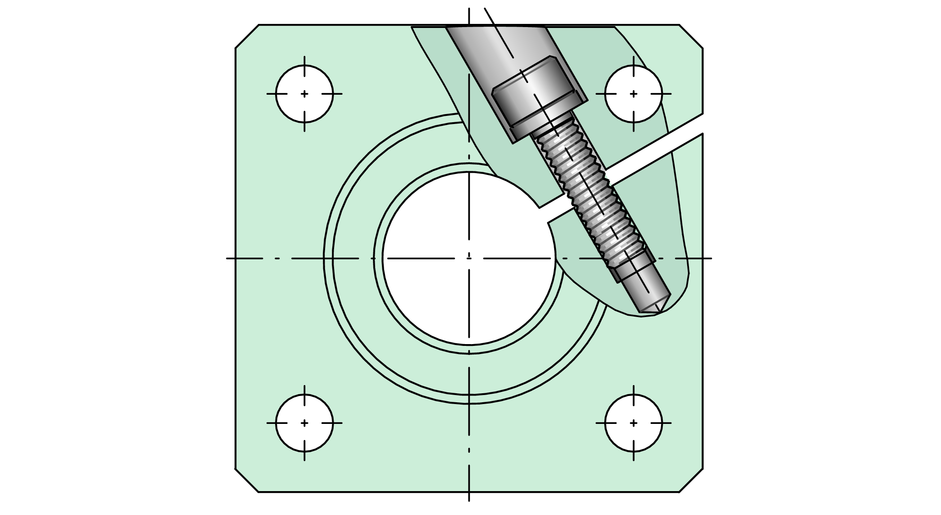

| Short Description | Shaft block |
Technical Data8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Length Of Carriage (L) | 0.025 m | |
| Total Width (B) | 60 mm | |
| Mounting Dimension (D1) | 42 mm | |
| Diameter (D) | 25 mm | |
| Mounting Dimension (Jb) | 42 mm | |
| Mounting Dimension (L1) | 16 mm | |
| Mounting Dimension (N1) | 6.6 mm | |
| Width Across Flats (W) | 5 mm |
