Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications11 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore diameter | d | 22 mm |
| Outside diameter | D | 35.5 mm |
| Width | B | 24.5 mm |
| Basic dynamic load rating | C | 40.5 kN |
| Basic static load rating | C0 | 41 kN |
| Fatigue load limit | Pu | 6.8 kN |
| Reference speed | nref | 5700 r/min |
| Limiting speed | nG | 11500 r/min |
| Mass | ≈m | 0.08 kg |
| Minimum operating temperature | Tmin | -30 °C |
| Maximum operating temperature | Tmax | 120 °C |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2290730 | |
| Brand | INA | |
| X Life Marking | XL-RV |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

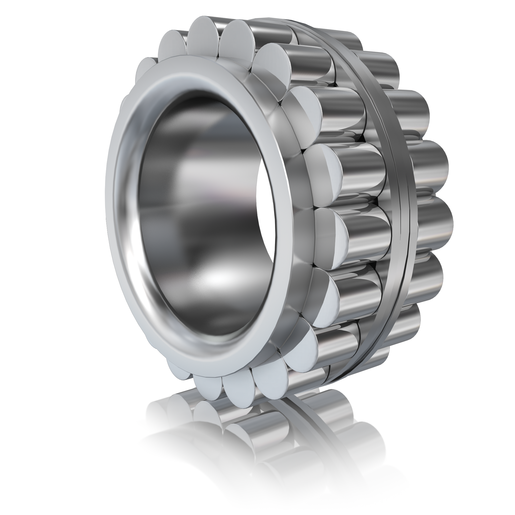

| Construction | RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18 | |
| Short Description | Cylindrical roller bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Rib Diameter Inner Ring (D) | 22 mm | |
| Outer Envelope Circle (Ew) | 35.5 mm | |
| Total Width (B) | 24.5 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 40,500 N | |
| Basic Static Load Rating, Radial (C0R) | 41,000 N | |
| Operating Temperature Min. (Tmin) | -30 °C | |
| Raceway Width (X) | 19 mm | |
| Minimum Diameter Shaft Shoulder (Da) | 29 mm | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Limiting Speed (Limiting Spe) | 11,500 1/min | |
| Reference Speed (Nϑr) | 5,700 1/min | |
| Minimum Chamfer Dimension (Rmin) | 0.3 mm | |
| Fatigue Load Limit, Radial (Cur) | 6,800 N |
