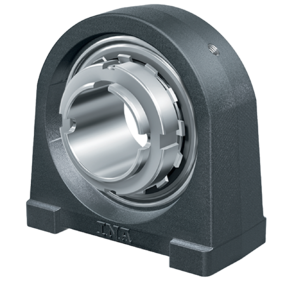

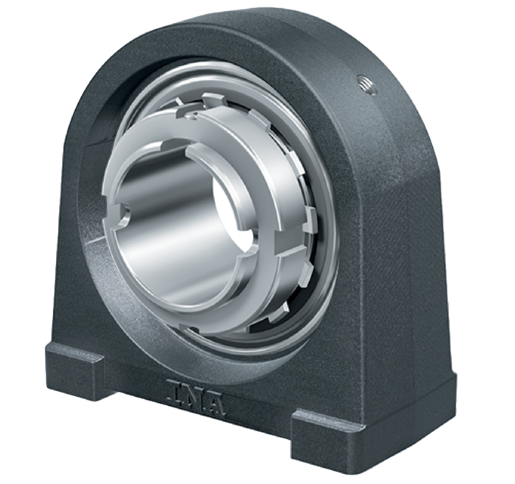

INA RSHEA20-N

Plummer block housing units technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 20 mm
Outside diameterD: 65 mm
WidthB: 63.8 mm
Mass≈m: 0.45 kg
Width (B): 63.8 mm
Outside Diameter (D): 65 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications5 parameters

Core specifications
Parameter	Symbol	Value
Series		RSHEA20
Bore diameter	d	20 mm
Outside diameter	D	65 mm
Width	B	63.8 mm
Mass	≈m	0.45 kg

Manufacturer Identity4 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		401726
Brand		INA
Base Type		RSHEA20
X Life Marking		n.r.

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Plummer block housing unit RSHEA..-N, RIBB cast iron SHE
Short Description		Plummer block housing unit

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		63.8 mm
Outside Diameter (D)		65 mm
Bore Diameter (D)		20 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RSHEA20-N
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
