Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RMEO90 | |
| Bore diameter | d | 90 mm |
| Outside diameter | D | 300 mm |
| Width | B | 101 mm |
| Mass | ≈m | 14.95 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1959632 | |
| Brand | INA | |
| Base Type | RMEO90 | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

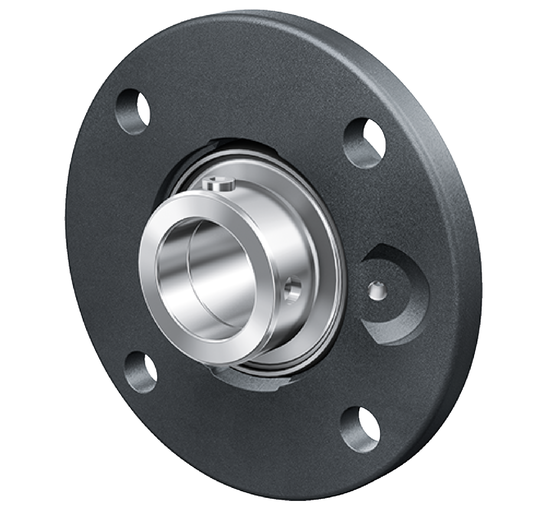

| Construction | Housing units RMEO, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, series 63, R seals | |
| Short Description | Flanged housing unit |
Technical Data5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Width (B) | 101 mm | |
| Bore Diameter (D) | 90 mm | |
| Total Height Unit (U) | 62.5 mm | |
| Height Flange (H) | 300 mm | |
| Thickness Of Flange (A1) | 22 mm |
