Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications8 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RCSMB17/65 | |
| Bore diameter | d | 17 mm |
| Outside diameter | D | 65.1 mm |
| Width | B | 25.4 mm |
| Basic dynamic load rating | C | 9.8 kN |
| Basic static load rating | C0 | 4.75 kN |
| Fatigue load limit | Pu | 0.248 kN |
| Mass | ≈m | 0.18 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358029 | |
| Brand | INA | |
| Base Type | RCSMB17/65 | |
| Old Designation | ["RCSMB17/65-FA106"] | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

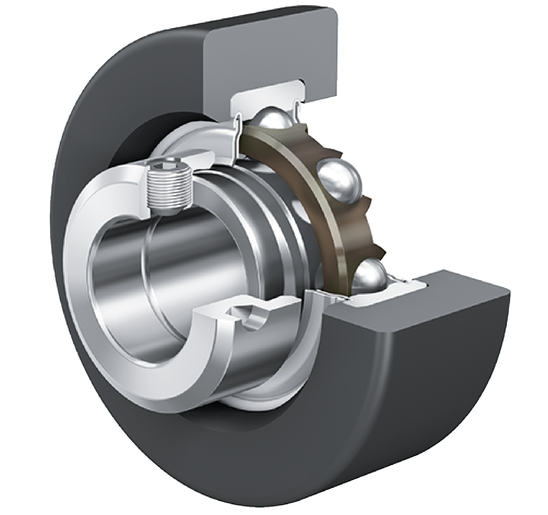

| Construction | Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides | |
| Short Description | Radial insert ball bearing |
Technical Data14 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 17 mm | |
| Outside Diamater (D) | 65.1 mm | |
| Width, Outer Ring (C) | 25.4 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 9,800 N | |
| Basic Static Load Rating, Radial (C0R) | 4,750 N | |
| Load Carrying Capacity (Rubber Interliner) (Load Carryin) | 900 N | |
| Locking Collar Total Width (B1) | 28.6 mm | |
| Calculation Factor (F0) | 13 | |
| Distance Of Raceway To Locking Collar (S1) | 22.1 mm | |
| Distance Raceway Of Rubber Interliner To Face Side (P) | 12.7 mm | |
| Hardness Rubber Interliner (Shore A) | 70 ° | |
| Flange Diameter Rubber Interliner (D2) | 35 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 28.4 mm | |
| Fatigue Load Limit, Radial (Cur) | 248 N |
