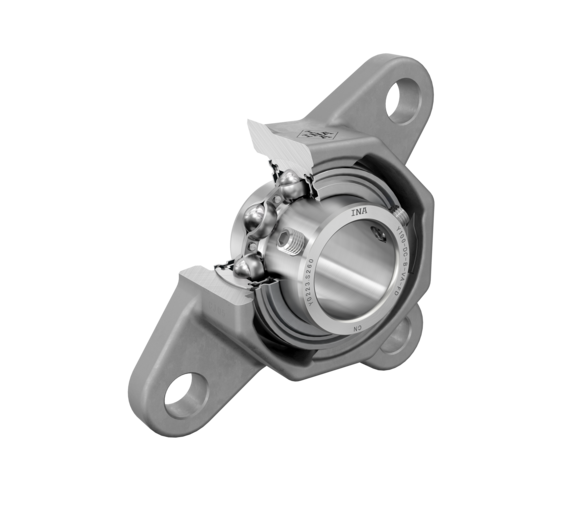

INA RCJY015-VA-FD

Flanged housing unit technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 23.812 mm
Outside diameterD: 95 mm
WidthB: 35.8 mm
Mass≈m: 0.69 kg
Bore Diameter (D): 23.812 mm
Total Height Unit (U): 35.8 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Bore diameter	d	23.812 mm
Outside diameter	D	95 mm
Width	B	35.8 mm
Mass	≈m	0.69 kg

Manufacturer Identity2 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2591107
Brand		INA

Product Identity1 parameter

Product Identity
Parameter	Symbol	Value
Short Description		Flanged housing unit

Technical Data4 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		23.812 mm
Total Height Unit (U)		35.8 mm
Flange Width (L)		95 mm
Thickness Of Flange (A1)		10 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RCJY015-VA-FD
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
