Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RCJA40 | |
| Bore diameter | d | 40 mm |
| Outside diameter | D | 130 mm |
| Width | B | 52.2 mm |
| Mass | ≈m | 1.87 kg |
Manufacturer Identity5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 403032 | |
| Brand | INA | |
| Base Type | RCJA40 | |
| Old Designation | ["RCJA 40"] | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

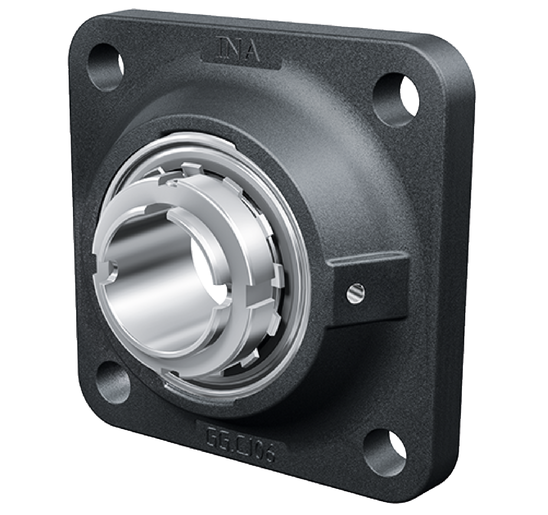

| Construction | Flanged housing unit RCJA..-N | |
| Short Description | Flanged housing unit |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 40 mm | |
| Total Height Unit (U) | 52.2 mm | |
| Flange Width (L) | 130 mm | |
| Thickness Of Flange (A1) | 13 mm |
