Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RCJ70 | |
| Bore diameter | d | 70 mm |
| Outside diameter | D | 188 mm |
| Width | B | 82.5 mm |
| Mass | ≈m | 5.44 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 1873512 | |
| Brand | INA | |
| Base Type | RCJ70 | |
| X Life Marking | XL |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Housing units RCJ..-FA164, four-bolt flanged housing units, cast iron, eccentric locking collar, R seals, for temperatures up to +250°C | |

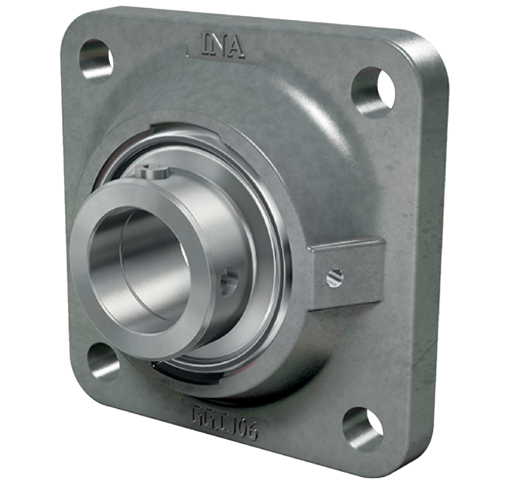

| Short Description | Flanged housing unit |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 70 mm | |
| Total Height Unit (U) | 82.5 mm | |
| Flange Width (L) | 188 mm | |
| Thickness Of Flange (A1) | 18 mm |
