Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications5 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RCJ20 | |
| Bore diameter | d | 20 mm |
| Outside diameter | D | 87 mm |
| Width | B | 42 mm |
| Mass | ≈m | 0.31 kg |
Manufacturer Identity3 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 2076637 | |
| Brand | INA | |
| Base Type | RCJ20 |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Construction | Flanged housing units, FD design | |

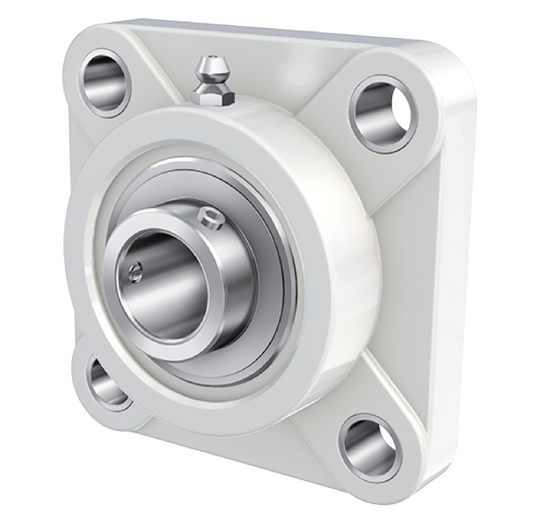

| Short Description | Flanged housing unit |
Technical Data4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 20 mm | |
| Total Height Unit (U) | 42 mm | |
| Flange Width (L) | 87 mm | |
| Thickness Of Flange (A1) | 13.4 mm |
