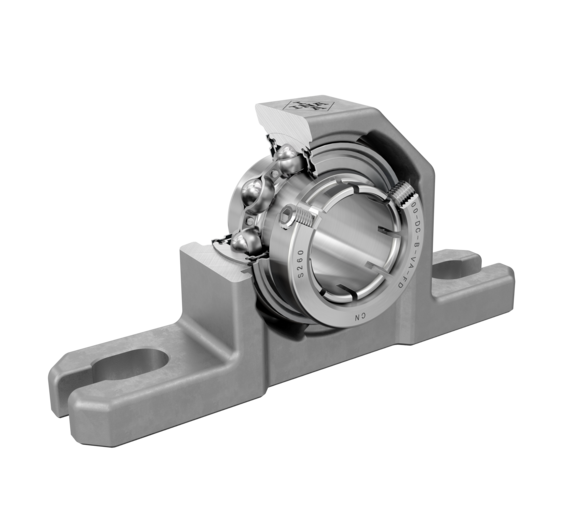

INA RASEOC012-VA-FD

Plummer block housing units technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 19.05 mm
Outside diameterD: 127 mm
WidthB: 61.8 mm
Mass≈m: 0.67 kg
Width (B): 61.8 mm
Outside Diameter (D): 127 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications5 parameters

Core specifications
Parameter	Symbol	Value
Series		RASEOC012
Bore diameter	d	19.05 mm
Outside diameter	D	127 mm
Width	B	61.8 mm
Mass	≈m	0.67 kg

Manufacturer Identity3 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		2625409
Brand		INA
Base Type		RASEOC012

Product Identity1 parameter

Product Identity
Parameter	Symbol	Value
Short Description		Plummer block housing unit

Technical Data3 parameters

Technical Data
Parameter	Symbol	Value
Width (B)		61.8 mm
Outside Diameter (D)		127 mm
Bore Diameter (D)		19.05 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA RASEOC012-VA-FD
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
