Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications7 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RABRN50/100 | |
| Bore diameter | d | 50 mm |
| Outside diameter | D | 100 mm |
| Width | B | 30 mm |
| Basic dynamic load rating | C | 35 kN |
| Basic static load rating | C0 | 23.2 kN |
| Mass | ≈m | 1.15 kg |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358041 | |
| Brand | INA | |
| Base Type | RABRN50/100 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

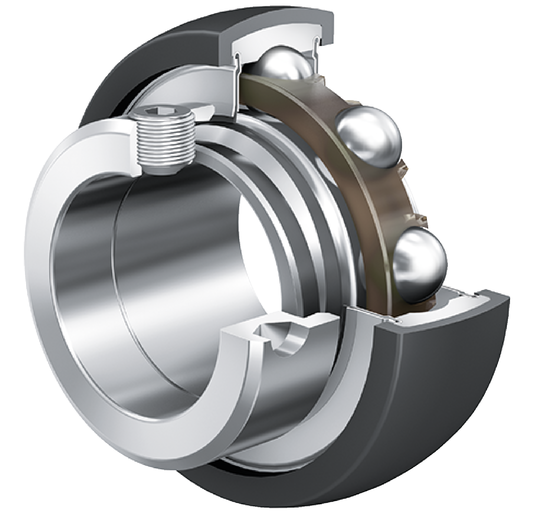

| Construction | Radial insert ball bearing RABRN, with rubber interliner | |
| Short Description | Radial insert ball bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 50 mm | |
| Outside Diamater (D) | 100 mm | |
| Width, Outer Ring (C) | 30 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 35,000 N | |
| Basic Static Load Rating, Radial (C0R) | 23,200 N | |
| Operating Temperature Max. (Tmax) | 120 °C | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Load Carrying Capacity (Rubber Interliner) (Load Carryin) | 4,100 N | |
| Locking Collar Total Width (B1) | 62.8 mm | |
| Distance Of Raceway To Locking Collar (S1) | 38.2 mm | |
| Hardness Rubber Interliner (Shore A) | 80 ° | |
| Flange Diameter Rubber Interliner (D2) | 80 mm | |
| Outside Diameter Locking Collar/Locknut (D3) | 69 mm |
