Technical data
Product specifications
Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.
Core specifications9 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Series | RA103 | |
| Bore diameter | d | 30.162 mm |
| Outside diameter | D | 62 mm |
| Basic dynamic load rating | C | 19.5 kN |
| Basic static load rating | C0 | 11.3 kN |
| Fatigue load limit | Pu | 0.53 kN |
| Mass | ≈m | 0.21798 kg |
| Minimum operating temperature | Tmin | -20 °C |
| Maximum operating temperature | Tmax | 100 °C |
Manufacturer Identity4 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Schaeffler Product Code | 358959 | |
| Brand | INA | |
| Base Type | RA103 | |
| X Life Marking | n.r. |
Product Identity2 parameters
| Parameter | Symbol | Value |
|---|---|---|

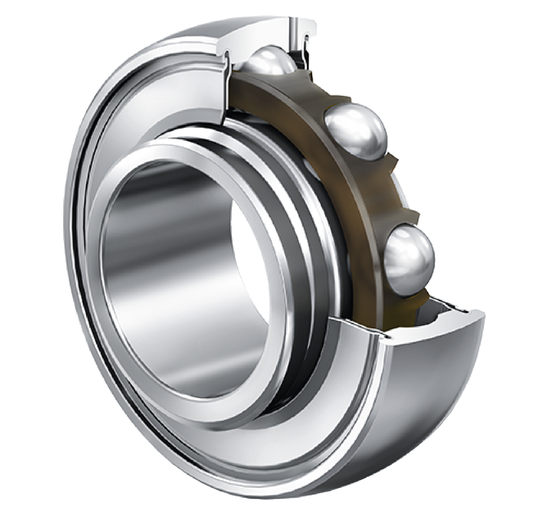

| Construction | Radial insert ball bearing RA..-NPP-B-L402/70-OSE | |
| Short Description | Radial insert ball bearing |
Technical Data13 parameters
| Parameter | Symbol | Value |
|---|---|---|
| Bore Diameter (D) | 30.162 mm | |
| Outside Diameter (Dsp) | 62 mm | |
| Basic Dynamic Load Rating, Radial (Cr) | 19,500 N | |
| Basic Static Load Rating, Radial (C0R) | 11,300 N | |
| Operating Temperature Min. (Tmin) | -20 °C | |
| Operating Temperature Max. (Tmax) | 100 °C | |
| Width, Outer Ring (C) | 18 mm | |
| Calculation Factor (F0) | 13.8 | |
| Total Width (Total Width) | 23.8 mm | |
| Distance Raceway (S) | 9 mm | |
| Rib Diameter Sealing Inner Ring (D2) | 37.3 mm | |
| Bore Diameter, Inch (D) | 1.188 in | |
| Fatigue Load Limit, Radial (Cur) | 530 N |
