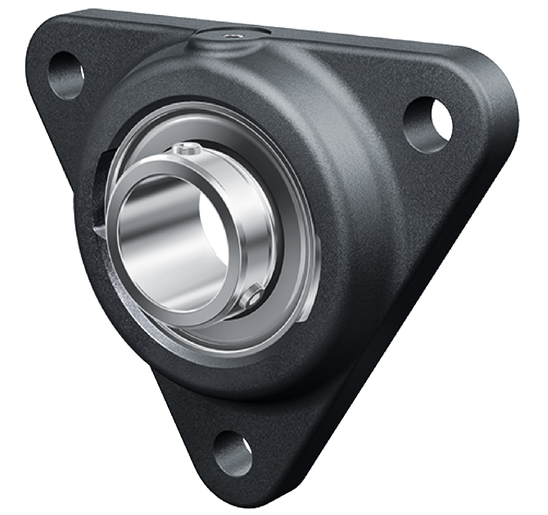

INA PCFTRY35

Flanged housing unit technical reference with manufacturer-sourced dimensions, characteristics and engineering resources.

Technical data available

Bore diameterd: 35 mm
Outside diameterD: 128 mm
WidthB: 41.05 mm
Mass≈m: 1.27 kg
Bore Diameter (D): 35 mm
Total Height Unit (U): 41.05 mm

Compare this model by brand →Check interchange requirements →

Use this page as a technical reference. Verify the current manufacturer specification and the complete application requirements before selection.

Technical data

Product specifications

Metric and imperial values are paired where the manufacturer provides both. Expand a section to review its parameters.

Core specifications4 parameters

Core specifications
Parameter	Symbol	Value
Bore diameter	d	35 mm
Outside diameter	D	128 mm
Width	B	41.05 mm
Mass	≈m	1.27 kg

Manufacturer Identity4 parameters

Manufacturer Identity
Parameter	Symbol	Value
Schaeffler Product Code		403141
Brand		INA
Base Type		PCFTRY35
X Life Marking		n.r.

Product Identity2 parameters

Product Identity
Parameter	Symbol	Value
Construction		Flanged housing unit PCFTRY
Short Description		Flanged housing unit

Technical Data4 parameters

Technical Data
Parameter	Symbol	Value
Bore Diameter (D)		35 mm
Total Height Unit (U)		41.05 mm
Height Flange (H2)		128 mm
Thickness Of Flange (A1)		14 mm

Technical documents & data sheet

This product page is a BearingScope catalogue reference, not a manufacturer-certified drawing. Preserve the full brand and designation when comparing files.

Record identity: INA PCFTRY35
Document matching: Exact designation, assembly scope, revision and units must agree.

No verified redistributable CAD or manufacturer PDF is registered for this exact model. A catalogue image is not a dimensioned drawing. Missing technical files are not generated or replaced with unrelated models.
